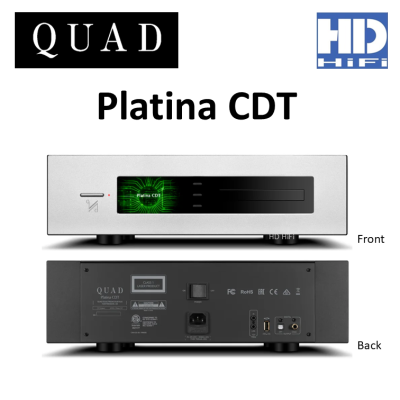

QUAD Platina CDT CD transport

The PLATINA series marks a considered evolution in design, application and performance for QUAD.


The Platina CDT continues this approach — a digital source component that brings together heritage, precision engineering and a contemporary understanding of system integration. Designed to sit alongside the Platina Integrated and Platina Stream, it completes the system with clarity of purpose and consistency of execution.
Model Platina CDT
General Description CD transport
Design Philosophy and Core Technology Compatible with CD/CD-R/CD-RW and data CD formats
CD Text display
Gapless Playback
Playback from USB HDD devices
4.3" 800 x 480 Large Size Full View IPS LCD
Fully functional remote control
Supported File Formats WAV, MP3, WMA, AAC, FLAC, APE format playback
USB Storage Device File System Supports FAT16/FAT32/exFAT format
Digital Output Amplitude 500 +/-50mVpp
Output Impedance 75 Ω
Frequency Response -0.01 dB (20Hz-20kHz, ref.1 kHz)
Sampling Rate 44.1 kHz (CD/CD-R/CD-RW)
44.1kHz - 96kHz (Data CD)
44.1kHz - 96kHz (USB HDD)
Digital Output Interface 1 x Coaxial, 1 x Optical
Standby Power Consumption <0.5W
Power Requirements (according to region) 220 - 240V - 50/60Hz
100 - 120V - 50/60Hz
Product Size W x H x D(mm) 445 x 135 x 310mm
Carton Size W x H x D(mm) 500 x 225 x 445mm
Net Weight 10.9kg
Gross Weight 12.8kg
Finish Black/Silver
