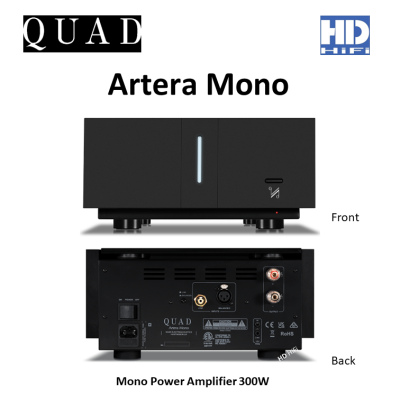

QUAD Artera Mono Power Amplifier

QUAD Artera Mono
Mono Power Amplifier

The QUAD Artera Mono is the latest addition to be best-selling QUAD Artera series of hi-fi components. It is developed employing the strongest design features derived from its siblings but exhibits updated internal audiophile-class components and multi-layer circuit boards. The design builds upon the classic QUAD sound, adding increased clarity and definition but foremost ensuring that the integrity of musical performance is more accessible and that the artist’s message is distinctly conveyed despite deficiencies in the recording.

Rated Output Power 300W 8 ohms (THD=1%, 1kHz)
Total Harmonic Distortion <0.006% (100W, 1kHz, bandwidth 20Hz-20kHz)
<0.03% (100W, 10kHz, bandwidth 20Hz-90kHz)
Frequency Response ﹢/﹣0.3dB (20Hz-20kHz, ref. 1kHz)
Input Sensitivity 0.98Vrms (Unbalanced), 2.1Vrms (Balanced)
Input Impedance 10K ohms (Balanced/Unbalanced)
Signal to Noise Ration (S/N) 112dB (A-weighted, ref. 300W)
Power Requirement 220V-240V~50/60Hz
100V-115V~50/60Hz
Maximum Power Consumption 750W
Standby Power Consumption <0.5W
Dimensions (mm) (W x H x D) 320 x 158 x 338
Carton Size (mm) (W x H x D) 465 x 260 x 465
Weight 13kg (Net)
17kg (Gross)
