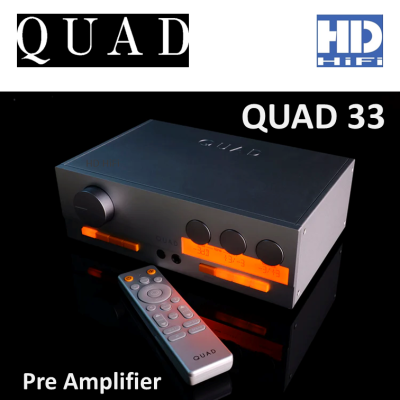

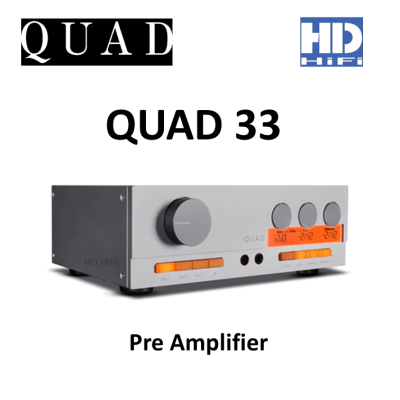

QUAD 33 Pre Amplifier

The external design is specifically intended to continue the QUAD

tradition of practical simplicity. Yet, it would be foolish to ignore

the implementation of modern-day capabilities, such as an informative

backlit display, delicate LED illumination and remote control

functionality. And just like the original, the overall appearance is

unmistakably QUAD, albeit now with a premium machined and anodised front

panel and all-metal chassis.

The new QUAD 33 is supported by digital microprocessor control but is otherwise faithful to a classic analogue design.

The 33 feeds the loudspeakers via the power amplifier using dedicated

stereo pre-outputs, with an RCA line-level and balanced XLR pre-out

option. For additional versatility and functionality, there’s also an

AUX output.




Model QUAD 33

General Description Pre Amplifier

Design Philosophy and Core Technology

Illuminated LCD screen

Dedicated High Performance Low Noise MM/MC Phono stage

Classic QUAD 'Tilt' adjustment

Classic QUAD / Tone Controls

Dedicated Current-Feedback Headphone Amplifier

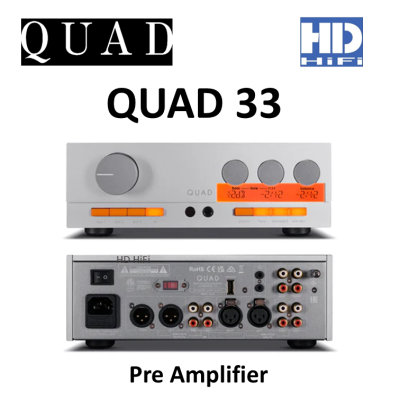

Inputs

3 x RCA, 1 x Balanced XLR (pair), 1 x Phono (MM/MC switchable)

Outputs

1 x RCA (AUX), 1 x XLR, 1 x RCA (Pre Out), 1 x Headphone, 2 x 12V Trigger Out

Pre Amplifier Section

Gain 0dB (Line / XLR)

+46dB (Phono MM)

+63.5dB (Phono MC)

Input Sensitivity (Vout=695mV)

695mV (Line / XLR)

3.2mV (Phono MM)

460uV (Phono MC)

Input Impedance

10k (Line / XLR)

47k/100pF (Phono MM)

100R/1.7nF (Phono MC)

Total Harmonic Distortion (THD)

<0.0005% (1kHz, Line/XLR)

<0.002% (1kHz, Phono MM / MC)

Frequency Response 20Hz - 20kHz (+/-0.2dB)

Signal-to-Noise ratio (S/N)

> 108dB (A-weighted, Line/XLR)

> 82dB (A-weighted, Phono MM)

> 74dB (A-weighted, Phono MC)

Output Impedance120 ohms

Headphone Amplifier

Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)

Output Impedance2.35 ohms

Load Impedance 20 - 600 ohms



General

Standby Power Consumption <0.5W

Net weight 4kg

Gross weight 4.96kg

Dimensions (mm) (W x H x D) 258 x 82.9 x 165

Carton Size (mm) (W x H x D) 330 x 192 x 257

Finish Classic QUAD Grey



Power requirements (depending on region)

220 - 240V - 50 / 60Hz

100 - 120V - 50 / 60Hz

Standard accessories

Power Cord, Remote Control, User Manual.
