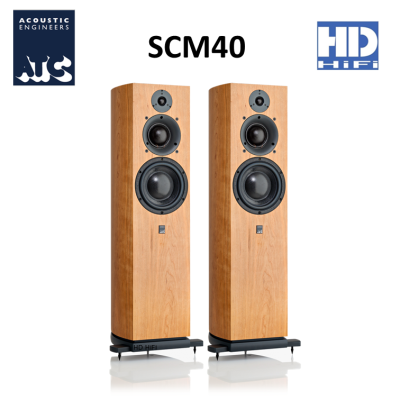

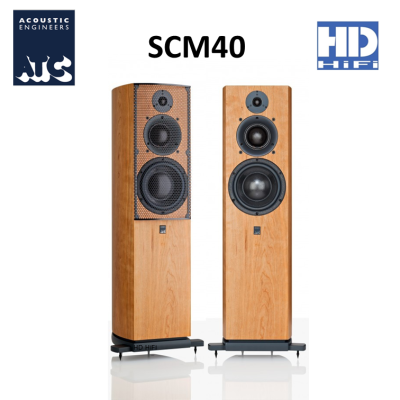

ATC SCM 40 Cherry
SKU : AT-030
ขายแล้ว 0 ชิ้น
฿230,000
จำนวน
คำอธิบายสินค้าแบบย่อ
Overview
New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
ATC 164mm bass driver.
Massive optimised motor assembly.
ATC Soft Dome mid-range driver.
Flat impedance curve allowing easy load for amplifiers.
Veneered Finish Options – Cherry, Black Ash.
Drivers: HF ATC 25mm Neodymium, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 112dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/4mm Plugs, tri-wire
Dimensions (HxWxD): 980 x 370 x 305mm / 38.58 x 14.56 x 12.01″ (inc. foot plinth, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 31kg
Spikes: 4 per cabinet, M8 x 1.25mm
Link http://atcloudspeakers.co.uk/wp-content/uploads/2016/09/ENTRY_28PP_BROCHURE_210916%20web.pdf
https://atc.audio/wp-content/uploads/2021/12/ENTRY-MANUAL-040919-webres.pdf
