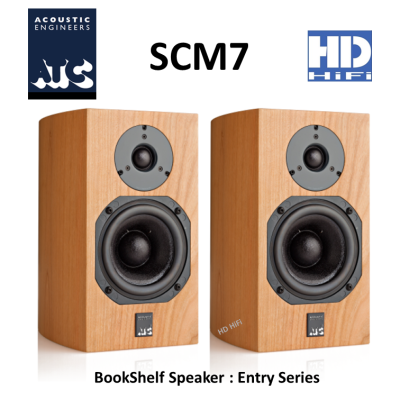

ATC SCM7 Bookshelf Speaker Cherry

SCM7
Overview

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
125mm ATC mid/bass unit with integral soft dome.
In-house, hand-wound precision flat wire coil.
Massive optimised motor assembly.
Flat impedance curve allowing easy load for amplifiers.








Drivers: HF ATC 25mm Neodymium Soft Dome, Mid/LF ATC 125mm SC Matched Response: ±0.5dB Frequency Response (-6dB): 60Hz-22kHz Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical Sensitivity: 84dB @ 1W @ 1metre Max SPL: 103dB Recommended Power Amplifier: 75 to 300 Watts Nominal Impedance: 8 Ohm Crossover Frequency: 2.5kHz Connectors: Binding Posts/4mm Plugs, bi-wire Cabinet Dimensions (HxWxD): 300 x 174 x 215mm / 11.81 x 6.85 x 8.46″ (grill adds 28mm depth) Weight: 7.5kg
