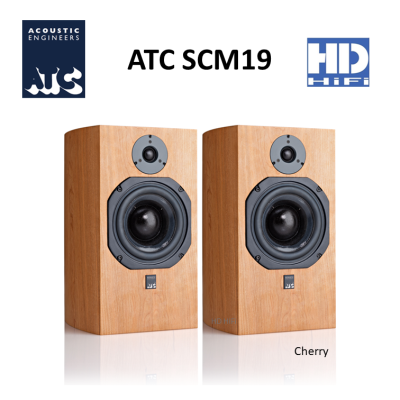

ATC SCM19 Bookshelf Speaker Cherry

ATC SCM19




Overview




New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

“SL” spec bass driver with 75mm integral soft dome.

9kg optimised short-coil/long gap motor assembly.

In-house, hand-wound precision flat wire coil.

Flat impedance curve allowing easy load for amplifiers.




Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL

Matched Response: ±0.5dB

Frequency Response (-6dB): 54Hz-22kHz

Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical

Sensitivity: 85dB @ 1W @ 1metre

Max SPL: 108dB

Recommended Power Amplifier: 75 to 300 Watts

Nominal Impedance: 8 Ohm

Crossover Frequency: 2.5kHz

Connectors: Binding Posts/4mm Plugs, bi-wire

Cabinet Dimensions (HxWxD): 438 x 265 x 300mm / 17.24 x 10.43 x 11.81″ (grill adds 34mm to depth)

Weight: 17.8kg
