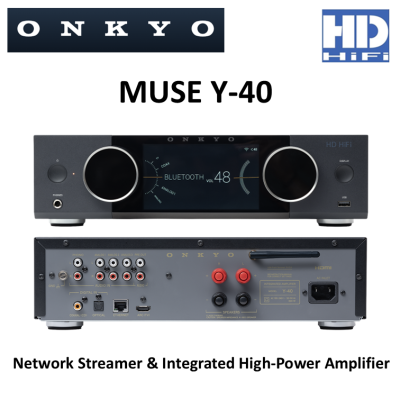

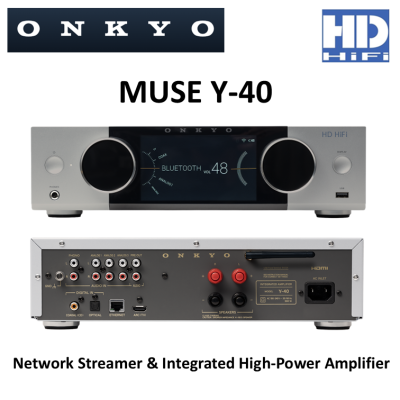

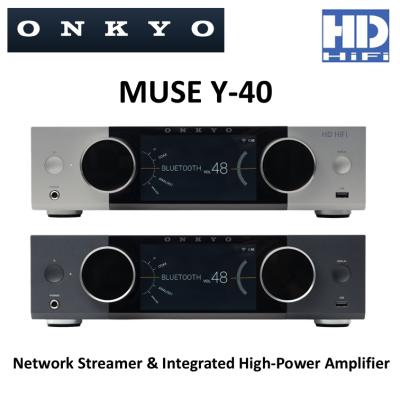

Onkyo Muse Y40 Network Streamer & Integrated High-Power Amplifier

Born from 80 years of Japanese audio craftsmanship, the Onkyo Muse Y-40 is an elegant 150W hi-fi centerpiece that blends timeless design, smart innovation, and effortless connectivity.

HIGH POWER, REFINED SOUND
Featuring an Axign Class D amplifier with MOSFET outputs, the Y-40 delivers a commanding
150W (4 ohms) of power, capable of driving any speaker with authority. The Muse Series
continues Onkyo’s long tradition of meticulous sound craftsmanship. With its powerful
yet expansive soundstage, the Y-40 faithfully conveys the artist’s original intent without
compromise.
COMPACT BODY AND SMART U/I
The compact form of the Muse Series integrates effortlessly into any space in your home.
Its 5.46-inch color LCD offers a wealth of information, including details about the currently
playing track and an analog-style VU meter. This display, combined with an intuitive
interface, also simplifies adjusting the unit’s settings. The Muse Series works with the
Onkyo Controller app, allowing you to power the unit on or off and manage settings just as
you would with other Onkyo products.
EVERYTHING YOU NEED FOR EPIC AUDIO EXPERIENCES
The Y-50 has almost all the inputs and outputs you need for an immersive audio experience.
Three pairs of analog RCA analog inputs, COAX input, Phono input, HDMI ARC, and
MM-compatible Phono input. It supports Ethernet and WiFi, enabling modern listening
styles with streaming playback.
SUPPORTING YOUR MODERN AUDIO EXPERIENCE
Your carefully curated playlists play well with the Onkyo Y-50 Network Integrated Amplifier.
Seamlessly hardwire or cast your content from any of the following built-in platforms:
Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Google Cast.
THE PERFECT AUDIO SYSTEM FOR YOU
The Y-40 has an output power of 150w(4ohm)/75w(8ohm). Although it is a compact single
integrated amplifier, it can powerfully drive a wide variety of speakers, from large floor
standing speakers to small bookshelf speakers, to maximize their potential

OUTPUT POWER 150w(4Ω, 1kHz, THD 0.7%, 2ch driven) /
75w(8Ω, 20Hz-20kHz, THD 0.08%, 2ch driven)
AMPLIFIER CHANNEL 2 Ch
PRE AMPLIFIER CHANNEL 2 Ch
AMPLIFIER TYPE Class D
FREQUENCY RESPONSE 20Hz~30kHz(+1/-3dB)
TONE CONTROL
(BASS / TREBLE) 100Hz ±10dB / 10kHz ±10dB
SPEAKER IMPEDANCE 4-16Ω
ANALOG AUDIO INPUT RCA (Unbalanced) x 3 Pair
DIGITAL AUDIO INPUT HDMI ARC, COAX, Optical, USB-A (Storage playback)
PHONO INPUT 1 Pair (MM)
AUDIO PRE OUTPUT RCA(Unbalanced) x 1 Pair
HEADPHONE OUTPUT 1/4”(6.3mm) Jack
NETWORK CONNECTIVITY Wi-Fi, LAN
BLUETOOTH SBC, AAC
PRODUCT DIMENSIONS
(W X H X D) 13.8” (350mm) x 3.9” (99mm) x 13.3” (337mm)
PRODUCT WEIGHT 9.7lbs (4.4 kg)
PACKAGE DIMENSIONS
(W X H X D) 18.3” (465mm) x 8.9” (225 mm) x 15.9” (405mm)
PACKAGE WEIGHT CUM: 15.4lbs (7.0kg), CUP: 15.0lb (6.8kg),
CUR/CUJ: 14.6lb (6.6kg)
POWER CONSUMPTION 65w, 1.8w (idle), Less than 0.4w (Standby
