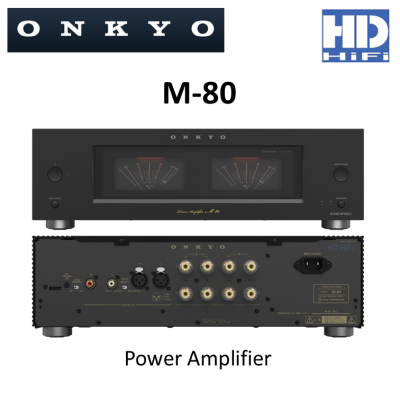

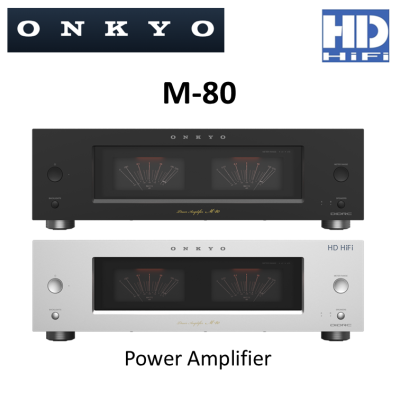

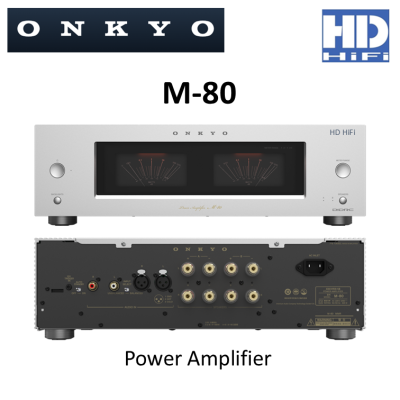

Onkyo M80 Power Amplifier

With a three-stage Inverted Darlington Amplifier and great attention paid to vibration supression, the Onkyo M-80 Power Amplifier powerfully drives large speakers to deliver dynamic full range audio that will captivate and move you.

REFINED STYLE YOU CAN FEEL
Just as your favorite music resonates on an emotional level, premium design is felt
instinctively. Intuitively. The Onkyo Icon Series is meticulously designed for simplicity
and balance, blending an elegant form factor with classic hi-fi details. Carefully selected
materials and tactile buttons and knobs elevate the user experience to something greater
than the sum of its parts.
SUPERIOR SOUND STARTS WITH ONKYO
Sophisticated circuitry, elevated design choices, and next-generation tech are weaved into
every millimeter of Onkyo’s new Icon Series. Our dedicated engineers believe everyone
deserves an exceptional listening experience with all the nuance, detail, and emotion that
the artists or players intended. The content played through any of our Icon Series products
isn’t just heard – it’s felt.
POWERING THE MUSIC THAT MOVES YOU
The M-80 uses a three-stage Inverted Darlington Amplifier. The three-stage Inverted
Darlington Amplifier has a very low output impedance and drives speakers powerfully
with a large current. Also, by keeping NFB (Negative Feedback) low, it is not affected by
noise from the speaker. It offers a powerful yet highly resolving and informative sound.
The M-80’s output stage transistors are in parallel configuration, which provides excellent
instantaneous current supply capability, further enhancing the rise of sound and the sense
of power. The driver stage of the M-80 amplifier uses DIDRC (Dynamic Intermodulation
Distortion Reduction Circuitry). Reducing beats generated signals(noise) in the ultra-high
frequency band by DIDRC’s high slew rate designand helps produce the natural sound of an
analog record.
CUTTING EDGE COMPONENTRY FOR CAPTIVATING PLAYBACK
The M-80 housing consists of two aluminum side panels and a steel top panel.
The three-piece construction of the housings increases rigidity and improves seismic
resistance. Various vibrations are suppressed and sound quality is improved.
CREATE YOUR PERFECT SYSTEM
The M-80 has an output power of 130w (8ohm, 20-20kHz, THD 0.07%, 2ch driven) / 200w
(4ohm, 1kHz, THD 0.7%, 2ch driven) which allows it to powerfully drive large speakers and
bring you dynamic acoustic information. For example, Klipsch Forte speakers paired with
the P-80 and M-80 would maximize the dynamic and extended sound of the Forte.
FROM ONKYO ACADEMY: THE BENEFITS OF A POWER AMPLIFIER
A power amplifier receives the signal from your pre-amp and literally powers it into your
speakers. Think of your pre-amp as a brain, and your power amplifier as the muscle.
Separating your amplifiers into pre- and power gives you ultimate flexibility in audio
playback. Since they are not affected by each other’s circuits, they can provide
high-resolution sound quality through even cleaner signal transmission. Audiophiles are
well-known to prefer specific power amps and the way they impact sound quality and
coloration. The M-80 is a power amplifier that reproduces the full range of artists or players’
intentions in their music and drives you into a world of emotion.

OUTPUT POWER 130w ( 8ohm, 20-20kHz, THD 0.07%, 2ch driven )
200w ( 4ohm, 1kHz, THD 0.7%, 2ch driven )
AMPLIFIER CHANNEL 2 Ch
AMPLIFIER TYPE Class AB
FREQUENCY RESPONSE 5Hz~100kHz(+1/-3dB)
SPEAKER IMPEDANCE 4-16Ω
ANALOG AUDIO INPUT RCA(Unbalanced) x 1pair
XLR(Balanced) x 1pair
12V TRIGER Input(1/8”(3.5mm) Jack)
PRODUCT DIMENSIONS
(W X H X D) 17.1” (435mm) x 5.3” (135mm) x 13.6” (345mm)
PRODUCT WEIGHT 13.5 kg
PACKAGE DIMENSIONS
(W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)
POWER CONSUMPTION 445w, 51w(idle), Less than 0.3w(Standby)
