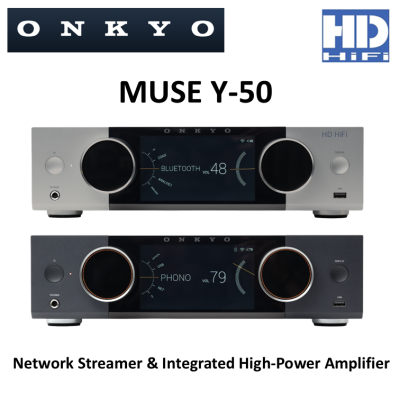

Onkyo Muse Y50 Network Streamer & Integrated High-Power Amplifier

The inspiring Onkyo Muse Y-50 fuses 80 years of Japanese audio expertise into an elegant, 250W hi-fi hub with premium design, smart features, and versatile connectivity.

HIGH POWER, REFINED SOUND
Powered by an Axign Class D amplifier with MOSFET output, the Y-50 delivers a
commanding 250W (4 ohms), providing the strength to drive virtually any speaker and
unlock its full capabilities. Onkyo’s long-standing tradition of sound refinement continues in
the Muse Series, with the Y-50 offering a powerful yet expansive soundstage that faithfully
communicates the artist’s original intent without compromise.
HIGH BUILD QUALITY
Demonstrating an unwavering dedication to craftsmanship, the Y-50 is equipped with
premium audio-grade speaker terminals. Its aluminum front panel not only delivers a
refined, high-end appearance but also provides exceptional rigidity, helping prevent speaker
induced vibrations from affecting sound quality. The distinctively patterned San Kuzushi
ventilated top plate serves as a subtle homage to Japanese tradition, while providing heat
dissipation.
COMPACT BODY AND SMART U/I
The Muse Series features a compact design that fits effortlessly into any space in your
home. Its 5.46-inch color LCD delivers a range of useful information, including details
about the song currently playing and an analog-style VU meter. This display, along with
the intuitive UI, also simplifies configuring the unit’s settings. The Muse Series works
seamlessly with the Onkyo Controller app, allowing you to power the unit on or off and
adjust various settings just as you would with other Onkyo products.
EVERYTHING YOU NEED FOR EPIC AUDIO EXPERIENCES

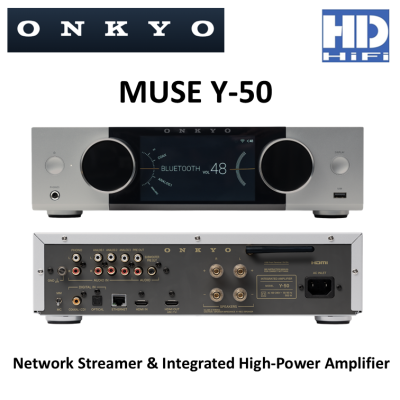

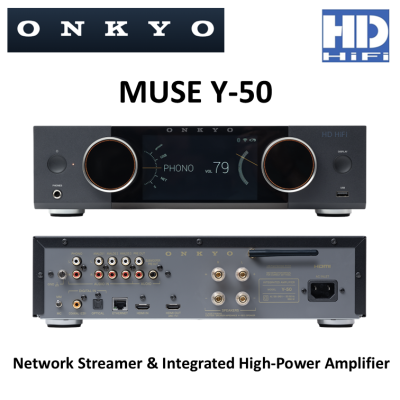

The Y-50 offers nearly all the inputs and outputs needed for a complete audio setup. It
includes three pairs of RCA analog inputs, a coaxial input, a phono input, an HDMI input,
HDMI ARC, an MM/MC-compatible phono input, and an HDMI output. With both Ethernet
and Wi-Fi support, it enables modern streaming playback. Its HDMI connections handle
both video and audio, making it compatible with game consoles and other devices that lack
HDMI ARC. The Y-50 also features a proprietary room-calibration system developed for the
Muse Series, which analyzes your listening space and applies sound-field correction tailored
to your environment.
SUPPORTING YOUR MODERN AUDIO EXPERIENCE
Your carefully curated playlists play well with the Onkyo Y-50 Network Integrated Amplifier.
Seamlessly hardwire or cast your content from any of the following built-in platforms:
Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Google Cast.
THE PERFECT AUDIO SYSTEM FOR YOU
The Y-50 has an output power of 250w(4ohm)/125w(8ohm). Although it is a compact single
integrated amplifier, it can powerfully drive a wide variety of speakers, from large floor
standing speakers to small bookshelf speakers, to maximize their potential

OUTPUT POWER
AMPLIFIER CHANNEL
PRE AMPLIFIER CHANNEL
AMPLIFIER TYPE
FREQUENCY RESPONSE
TONE CONTROL
(BASS / TREBLE)
SPEAKER IMPEDANCE
ANALOG AUDIO INPUT
DIGITAL AUDIO INPUT
HDMI OUTPUT
PHONO INPUT
AUDIO PRE OUTPUT
SUBWOOFER OUTPUT
HEADPHONE OUTPUT
NETWORK CONNECTIVITY
BLUETOOTH
ROOM CALIBRATION
PRODUCT DIMENSIONS
(W X H X D)
PRODUCT WEIGHT
250w(4Ω, 1kHz, THD 0.7%, 2ch driven) /
125w(8Ω, 20Hz-20kHz, THD 0.08%, 2ch driven)
2 Ch
2.1 Ch
Class D
20Hz~30kHz(+1/-3dB)
100Hz ±10dB / 10kHz ±10dB
4-16Ω
RCA (Unbalanced) x 3 Pair
1
1 Pair (MM/MC)
1 Ch
HDMI INx1 (4K/120p, 8K/60p, VRR, QFT, ALLM, QMS, DSC, HDCP2.3)
RCA (Unbalanced) x 1 Pair
1/4”(6.3mm) Jack
Ethernet Terminal(10BASE-T/100BASE-TX)
SBC, AAC
Original (Onkyo Room EQ)
13.8” (350mm) x 3.9” (99mm) x 13.3” (337mm)
10.8 lb. (4.9 kg)
PACKAGE DIMENSIONS
(W X H X D)
PACKAGE WEIGHT
POWER CONSUMPTION
18.3” (465mm) x 8.9” (225mm) x 15.9” (405mm)
CUM: 16.8lbs (7.6 kg), CUP:16.3lb (7.4kg),
CUR/CUJ: 15.9lb (7.2kg)
115w, 1.8w (idle), Less than 0.4w (Standby
