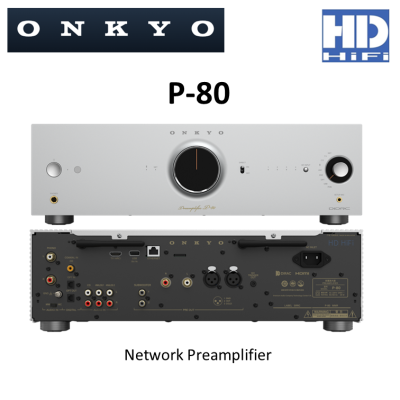

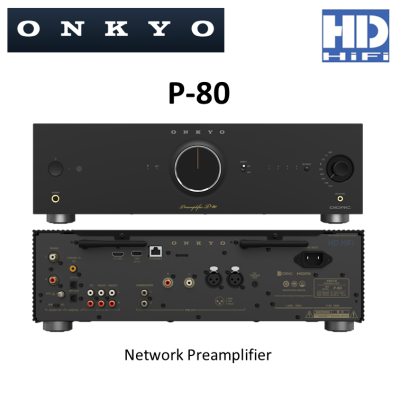

Onkyo P80 Network Preamplifier

Engineered for ultimate distortion-less sound with hi-fi inputs and modern streaming and control features, the Onkyo P-80 Network Preamplifier is fully equipped to deliver a sublime audio experience through your amplifier and onto your ears.

THE ICON SERIES

Is not only a complete renewal of Onkyo’s previous hi-hi products, but also the culmination

of Onkyo’s accumulated and continuously evolving sound creation technologies and was

developed to become the icon of the Onkyo brand.

QUALITY IS KING, AND SUBLIME SOUND IS THE DECREE

Thanks to patented DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry), the

P-80 Network Preamplifier delivers a vivid yet smooth and comfortable sound from any

music source. DIDRC is a discrete signal control circuit developed to make digital sound

sources such as CDs and music streaming services sound as natural as analog records.

This technology has been further refined and is used in the P-80’s the analog filter of the

DAC and phono amplifier circuits.

INPUT YOUR GEAR, CONNECT TO YOUR MUSIC

Hardwire your turntable, plug in your CD player, and stream your songs with ease thanks

to the Onkyo P-80’s many connectivity options. With 3 pairs of RCA analog inputs, MM/

MC phono, coax, optical, USB-A (Storage Playback) and headphone inputs, you have all the

flexibility your music devices need to move you.

ONKYO INVESTS IN YOUR MODERN LIFESTYLE

Your carefully curated playlists play well with the Onkyo P-80 Network Preamplifier.

Seamlessly hardwire or cast your content from any of the following built-in platforms:

Spotify Connect, TIDAL Connect, Qobuz Connectt, Amazon Music, Qplay, TuneIn, Works with

AirPlay 2, Chromecast, Roon Ready

FROM ONKYO ACADEMY: THE BENEFITS OF A PREAMPLIFIER

A preamplifier receives the signal input from your device (music source), and applies

tone controls to that signal. You have more control over your audio playback in terms of

bass, treble, volume, and more. When Fidelity IQ (Auto Loudness function) is turned on,

the system automatically provides optimal audio playback according to any volume in

conjunction with the master volume (This function operates independently of Tone Control

and can be used in conjunction with Tone Control / Parameters are generated for the

viewing environment using the setup microphone during initial setup). This Fidelity IQ goes

beyond correcting loudness characteristics. Onkyo’s sound quality engineers adjust the

frequency response to provide the most emotional sound possible, regardless of the music

genre. Select your source, tweak settings to your liking – which may vary depending on the

speakers you listen through, the type of audio being played, the genre of music, etc. – and

customize the experience accordingly.

DIRAC LIVE FOR THE DISCERNING LISTENER

Onkyo builds world-class products for early adaptors and tech enthusiasts. It’s what sets us

apart from the rest, and the P-80 Network Preamplifier is no exception to our commitment

to impress. That’s why it comes with built-in Dirac Live Room Correction. With frequency

response correction (500Hz-20kHz / full version is option), multiple playback modes, and

more, this highly sought feature will elevate your listening experience by taking your unique

system and room setup into account




PRE AMPLIFIER CHANNEL 2.2 Ch

FREQUENCY RESPONSE 5Hz~100kHz(+1/-3dB)

TONE CONTROL

(BASS / TREBLE) 100Hz ±10dB / 10kHz ±10dB

ANALOG AUDIO INPUT RCA (Unbalanced) 3 Pair

DIGITAL AUDIO INPUT HDMI ARC, COAX, Optical, USB-A (Storage playback)

PHONO INPUT 1 Pair (MM/MC)

AUDIO PRE OUTPUT RCA (Unbalanced) 1 Pair

XLR (Balanced) 1 Pair

SUBWOOFER OUTPUT RCA(Preout) x 2

HEADPHONE OUTPUT 1/4”(6.3mm) Jack

SETUP MIC INPUT 1/8”(3.5mm) Jack

12V TRIGER Output 1/8”(3.5mm) Jack

NETWORK CONNECTIVITY Wi-Fi, LAN

BLUETOOTH SBC, aptX, aptX HD

NETWORK SERVICE Spotify Connect, TIDAL Connect, Amazon Music,

Qobuz Connect, QQ Music, Tune In, Roon Ready

ROOM CALIBRATION Dirac Live® Room Correction

PRODUCT DIMENSIONS

(W X H X D) 17.1” (435mm) x 5.3” (135mm) x 14” (355mm)

PRODUCT WEIGHT 12.0 kg

PACKAGE DIMENSIONS

(W X H X D) 21.3” (542mm) x 9.3” (236mm) x 17.4” (441mm)

POWER CONSUMPTION 35w, 30w(idle), Less than 0.3w (Standby)
