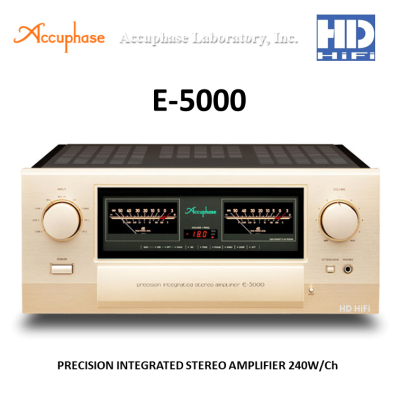

ACCUPHASE E-5000 PRECISION INTEGRATED STEREO AMPLIFIER

The E-5000 is the flagship high-power Class AB integrated amplifier developed to mark Accuphase’s 50-year
anniversary. The preamplifier section features our superior Balanced AAVA volume control, while the power
amplifier section includes an instrumentation amp and power transistors in a five-fold push-pull arrangement
driven in Class AB. These circuits create a balanced circuit from input to output. With its precisely balanced circuits and solidly built output stage, the E-5000 integrated amplifier presents every piece of music in exquisite detail.

Balanced AAVA volume control
Highly reliable logic-control signal switching relays

Ample input connectors (Five line level and two balanced)

Line level input and output connectors for a recorder

Individual phase setting for each input

Stereo signal can be switched to monophonic operation

Left / right balance control through Balanced AAVA

Volume attenuator that can instantly reduce sound as low as –20 dB

Loudness compensator to adjust audible sonic balance

Tone controls using summing active filters
Power amplification stage employs instrumentation amplifier principle

Current feedback amplification circuit topology assures excellent phase characteristics in high range

Speaker output protection circuit guards against short-circuiting

Protection circuitry using low impedance, highly reliable MOS-FET switches

Two massive speaker connectors for output switching and simultaneous output

Line level and balanced outputs at the preamplifier section support bi-amping connection

Line level and balanced inputs at the power amp section allow use as a power amplifier

Dedicated, high-quality headphone amplifier constructed with discrete components

Two expansion slots for option boards
