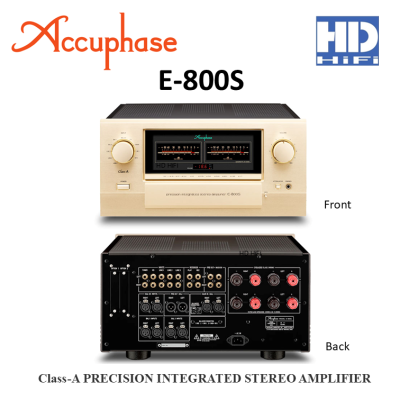

Accuphase E-800S Class-A PRECISION INTEGRATED STEREO AMPLIFIER

The E-800S is our flagship model that incorporates the full breadth of Accuphase's accumulated knowledge on integrated amplifiers. The preamplifier section incorporates a Balanced AAVA type volume control, while the power amp stage relies on an instrumentation amplifier principle and six-fold parallel push-pull configuration using power MOS-FETs driven in Class A, driving any loudspeakers to higher dimensions of sound. Enjoy the blissful acoustic space provided during playback with the E-800S.

Integrated amplifier with fully balanced configuration from input to output

Balanced AAVA type volume control
High-accuracy, high-rigidity volume sensor construction
Power amplification stage configured as an instrumentation amplifier
Six-fold parallel push-pull configuration using power MOS-FETs driven in Class A
Linear power output of 50 watts into 8 ohms, 100 watts into 4 ohms, or 200 watts into 2 ohms
High damping factor of 1,000
Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
Protection circuitry using MOS-FET switches
Three sets of balanced inputs
Dedicated, high-quality headphone amplifier with discrete circuitry
Speaker output protection circuit guards against short-circuiting
High-carbon cast iron insulators for superior vibration damping
Two expansion slots for option boards
