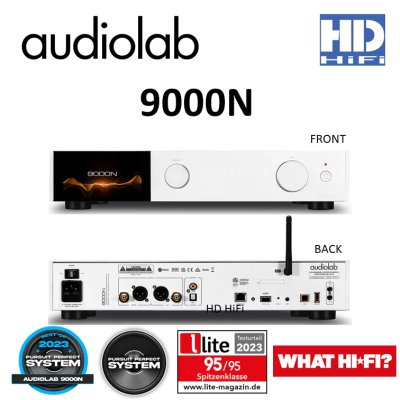

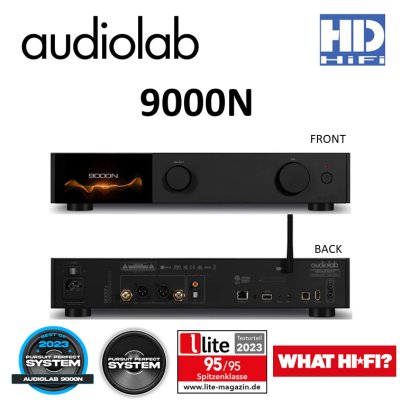

AudioLab 9000N Music Streamer

Developed to be the perfect digital streaming companion for the flagship audiolab 9000 series, the new 9000N is the result of over three year’s development and innovation to provide a critically stable, high-resolution wireless (and wired) digital music playback.




Design Philosophy And Core Technology ESS Sabre ES9038Pro 32bit DAC Quad Arm® Cortex®-A53 core,1.8GHz per Core Audiolab 9000N Streaming technology (IEEE 802.11 a / b / g / n / ac,2.4/5GHz) UPnP AV protocol with audio streaming extension (Open Home) Built-in Certified MQA Full decoder (via streaming & PC USB) Native support for Spotify Connect, TIDAL Connect, MQA, Qobuz and TuneIn Radio Roon Ready Gapless Playback High-resolution album artwork display USB storage / flash drive / USB hard disk (Single-partition FAT32, exFAT and NTFS) playback 4.3" (800 x 480px) IPS LCD screen iOS (11.0 or later) / Android (Android 4.0 or later) required for App control

The audiolab 9000N App Features Native support for TIDAL, MQA, Qobuz and TuneIn Radio Tidal MQA icons to easily identify high-res music Qobuz high-res icons to identify high-res music Volume control High-resolution album artwork display Artwork caching Intelligent search functionality Multiple Playlist complications & functionality Multiple tag handling Composer tag support Album-grouping in playlist Automatic internet links to artists / album / songs Saving and restoring of playlists (including Tidal and Qobuz)

Inputs 1 x Network Streaming 1 x PC USB (USB Type-B) 1 x Ethernet 10/100 / 1000 Base-T Ethernet 1 x 12V Trigger

Outputs 1 x RCA (pair) 1 x XLR (pair) 1 x Optical 1 x Coaxial 1 x 12V Trigger (Link)

Supported File Formats DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD) PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF Compressed (lossy) Audio: MP3 MQA

Sampling Frequency PCM: 44.1kHz-768kHz (705.6kHz / 768kHz Fixed-point supported via Audiolab 9000N App streaming) DSD: DSD64, DSD128, DSD256, DSD512 (Native)

Digital Section

Digital Output Voltage 500mV +/- 50mVpp

Output Impedance 75Ω

Frequency Response -0.01dB (20Hz - 20kHz, ref.1kHz)

Max. Sampling Frequency 192kHz / 24bit

Digital Outputs 1 x Coaxial , 1 x Optical

D to A Converter

Variable Output Voltage 0 – 2.05V

DAC ES9038Pro

Frequency Response +/-0.5dB (20Hz - 20kHz, ref.1kHz)

Total Harmonic Distortion <0.001% (1kHz @ 2.05Vrms)

Max. Sampling Frequency 768kHz / 32bit

Signal-to-noise ratio (A-weighted) >116dB(RCA), >120dB(XLR)

Output Impedance 120Ω

General

Standby Power Consumption <0.5W

Net Weight 6.2kg

Gross Weight 8kg

Dimensions (mm)(W x H x D) 444 x 89 x 333

Carton Size (mm)(W x H x D) 514 x 470 x 161

Finish Black / Silver

Power Requirements (depending on region) 220-240V ~ 50/ 60Hz 100-120V ~ 50/ 60Hz

Safety Regulation Conformity

Standard Accessories Power Cord, Remote Control, User Manual
