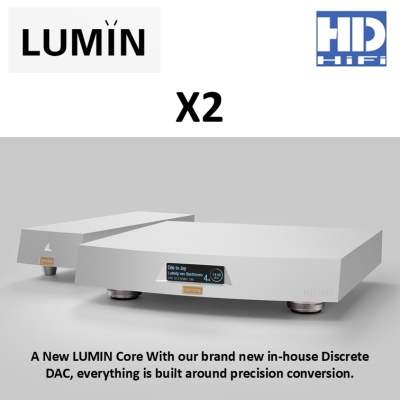

Lumin X2 A brand new flagship Network Music Player with our new DAC at the core

FLAGSHIP LUMIN PLAYER
FEATURING OUR BRAND NEW
IN-HOUSE DISCRETE DAC
CIRCUIT LAYOUT, POWER
MANAGEMENT AND SYSTEM
CLOCKING HAVE ALL BEEN
OPTIMISED AROUND THIS
NEW DAC, PROVIDING A TRULY
COHESIVE PLATFORM FOR
NETWORK AUDIO PLAYBACK
SOLID BILLET CNC CHASSIS
AND EXTERNAL
DUAL-TOROIDAL POWER
SUPPLY FOR MAXIMUM
STIFFNESS AND ISOLATION
LUNDAHL OUTPUT
TRANSFORMERS
DSD512 & PCM768 PLAYBACK
FIBRE NETWORK INCLUDING
DUAL-NETWORK BUILT-IN
NETWORK SWITCH

STREAMING PROTOCOL:
UPnP AV protocol with audio streaming
extension (OpenHome). Roon Ready. Plex.
INPUT:
DIGITAL AUDIO OUTPUT:
Industry-standard SFP (adapter may be needed
Plāys with Audirvāna. Spotify Connect. TIDAL
Connect. Qobuz. FLAC Lossless Radio. TuneIn
Radio. AirPlay 2. QPlay-compatible for
QQMusic. Gapless Playback. On-Device
Playlist. Multi-Room (Songcast)
APP FEATURES:
Native support for TIDAL, MQA, Qobuz,
Amazon Music, KKBox and TuneIn Radio. Tidal
MQA icons to identify high-res music. Qobuz
high-res icons to identify high-res music.
Volume control. High-resolution artwork.
Artwork caching. Search. Multiple tag handling.
Composer tag support. Album-grouping in
playlist. Automatic internet links to
artists/album/songs. Saving and restoring of
playlists (including Tidal and Qobuz)
SUPPORTED CONTROL DEVICES:
Apple devices. iOS 11.0 or later
Android devices. Android 4.0 (Ice Cream
Sandwich) or later required
for your particular switch/cables)
Gigabit Ethernet Network (1000BASE-T) RJ45
Use SFP/RJ45 simultaneously (e.g. connect one
to router and one to LUMIN L1/L2 or NAS)
USB storage, flash drive, USB hard disk
(Single-partition FAT32, exFAT and NTFS only)
SUPPORTED AUDIO FILE FORMATS:
DSD : DSF (DSD), DFF (DSD), DoP (DSD)
PCM: FLAC, Apple Lossless (ALAC), WAV, AIFF
OTHER: MP3, AAC (in M4A container), MQA
SUPPORTED SAMPLE RATES & BIT DEPTHS:
PCM, 44.1–768kHz, 16–32-bit, Stereo
DSD512, 22.6MHz, 1-bit, Stereo
UPSAMPLING RATES & BIT DEPTHS:
Upsampling and downsampling to every
supported format up to DSD256/PCM384
ANALOG AUDIO OUTPUT:
LUMIN Discrete DAC
Fully balanced dual-mono layout
Output connectors coupled with dual
LUNDAHL LL7401 output transformers
Femto Clock System with precision FPGA
distribution

DIGITAL AUDIO OUTPUT:

USB:
Native DSD512 support
PCM 44.1-768kHz, 16-32-bit
Coaxial BNC SPDIF:
PCM 44.1-192kHz, 16-24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
FINISH:
Silver or Black anodised aluminium
POWER SUPPLY:
External solid billet cnc dual-toroidal
Separate digital & analogue circuitry
Low-noise linear regulator
9-pin Output Connector
Available in 220–240V AC and 110–120V AC
versions ~ 50/60Hz
OTHER:
Leedh Processing lossless digital volume control
IsoAcoustics isolating feet on main chassis
MQA QRONO d2a filters available for all PCM
music (excluding via AirPlay)
Compatible with LUMIN Infrared Control
Package
Programme of Continuous Development –
Firmware-upgradable for further features and
enhancements

LUMIN: 350mm (W), 345mm (D),
77mm (H), 8kg
PSU: 106mm (W), 334mm (D),
77mm (H), 4kg
