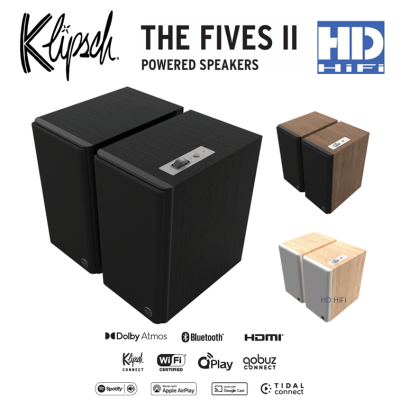

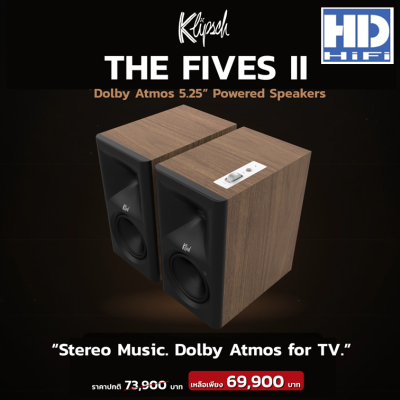

Klipsch The Fives II Dolby Atmos® 5.25" Powered Speakers

LEGENDARY AMERICAN SOUND

For more than 80 years, Klipsch has redefined high-fidelity sound, crafting speakers with passion and

precision right here in the United States. Following in the footsteps of our founder, Paul W. Klipsch, we

pack decades of acoustic expertise into every product, and The Fives II are no exception. The product

is a result of our tireless approach to engineering and a never-ending quest for perfect sound, The

Fives II embody the spirit of American design: reliable, revolutionary and ready to rock.

This collaboration with Onkyo infuses hundreds of years of expertise, innovation, and extensive

testing protocols. The integration of Onkyo technology into The Fives II Powered Speakers represents

a deliberate stride toward perfecting every aspect of sound reproduction. The all-new electronics

package inside each pair of Klipsch Fives II Powered Speakers delivers our signature, legendary

American sound with the connectivity our customers expect, in an optimized design that makes them

more compact and reliable than ever.

DOLBY ATMOS® SURROUND SOUND TECHNOLOGY

Dolby’s immersive audio formatting enhances your experience by placing sounds precisely around

and above you, creating a realistic, multidimensional surround sound environment, even with two

speakers.

BUILT-IN STREAMING

Powered by Onkyo’s precise, high-performance technology, The Fives II go beyond HDMI connectivity,

letting you stream your favorite platforms, including Google Cast, Apple AirPlay 2, Spotify Connect,

Tidal Connect, Qobuz Connect, and more.

ONE-PIECE BMC BAFFLE

The new one-piece BMC baffle is denser and more rigid, stopping unwanted resonance. A curved

radius widens the soundstage, improving off-axis sound and producing a more detailed response

without masking.

STUNNING RED OAK FINISH

We’ve added a bold new colorway to the mix. Say hello to Red Oak, a wood veneer designed to catch

the eye as well as the ears. The Red Oak finish is paired with a modern white baffle and light-gray

removable speaker grilles for a fresh, contemporary look.

DURABLE METAL CONTROLS

A thoughtfully designed control panel on the speaker’s top edge allows you to manually adjust

volume and source via a metal wheel and button. It offers a satisfying tactile response and effortless

control.

BACKLIT REMOTE

Fine-tune the experience or toggle between inputs and sources without breaking the mood using the

new remote with convenient keypad backlighting

SPECIFICATIONS

SYSTEM DESCRIPTION

FREQUENCY RESPONSE

MAX OUTPUT

HIGH FREQUENCY DRIVER

HIGH RESOLUTION AUDIO

LOW FREQUENCY DRIVER

ENCLOSURE MATERIAL

ENCLOSURE TYPE

WIFI, NETWORK CONNECTIVITY

BLUETOOTH® SPECIFICATIONS

INPUTS

OUTPUTS

HDMI SPECS

AUDIO DETAILS

DIMENSIONS

WEIGHT

FINISH

VOLTAGE

Powered Monitor (pair)

50Hz-25kHz +/- 3dB

103 dB (1M Stereo Pair)

1” (2.5cm) Titanium LTS vented tweeter with

Tractrix® horn

96kHz, 24-Bit

5.25” Jet Cerametallic™ woofer

MDF with genuine wood veneer

Bass-reflex via rear-firing port

2.4Ghz/5Ghz 802.11ac (2x2 MIMO) Wi-Fi,

10BASE-T/100BASE-TX Ethernet for network and IP control

VERSION: Bluetooth 5.4 - A2DP CODECS: SBC, AAC

HDMI-ARC/eARC with CEC, Bluetooth®, RCA Phono, RCA

Analog, USB-C Audio, USB-A, Optical digital

Single RCA line level output for connection to subwoofer,

HDMI Output

HDMI 2.1 Pass-Through, 8K, HDR10+, Dolby Vision™, and

BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto

Low Latency Mode), and QFT (Quick Frame Transport)

passthrough; eARC (Main Out), and HDCP 2.3

Dolby Atmos® playback with Virtual Height Channels,

Music, Movie, Direct, Dialog Enhancement, 5-Band EQ

12.9” (327mm) H x 7.2” (181mm) W x 10.7” (273.1mm) D

PRIMARY: 18.2 lbs (8.26kg) - SECONDARY: 15.5 lbs (7.16kg)

Walnut, Ebony, Red Oak

100V-240V 50/60Hz internal power supply with region

specific power cords

• Region-Specific power cord (2.0m)

INCLUDED ACCESSORIES

COMPATIBLE SPEAKER STAND

3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM

• Remote control (2x AAA batteries)

• 4-conductor speaker cable (4m)

• HDMI Cable (1.5m)

Klipsch KS-28
