Eversolo DAC-Z10 Hi-Fi DAC

From digital to analog, the DAC-Z10 lets music unfold in its purest form
A DAC that reveals the authentic character and finest details of sound

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment. Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.

Three Independent Power Supplies
With three independent toroidal transformers for left channel, right channel, and system power, the DAC-Z10 maintains ultra-low noise down to 42μV. This design minimizes interference, giving each channel its own clean, isolated voltage support for a stable and detailed sound.

Dual Decoding Modules
Built on a fully balanced architecture, the DAC-Z10 features dual independent AK4191 + AK4499 DAC modules for the left and right channels. Combined with AKM’s Velvet Sound™ technology, it strikes the perfect balance between precision and tonal richness.

R2R Volume Control
The DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.

Fully Balanced Preamplifier
The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.

Accurate Clock System
OCXO Temperature-Controlled Crystal Oscillator + Phase-Locked Loop Technology
External 10 MHz & 25 MHz High-Precision Clock Support | FPGA Clock Reconstruction

Phase-Locked Loop Technology
The DAC-Z10 integrates an OCXO temperature-controlled crystal oscillator and PLL (Phase-Locked Loop) technology to achieve precise clock reconstruction. Accurate timing is fundamental to high-resolution audio reproduction, and with the stability of the OCXO and the precision of PLL correction, the DAC-Z10 ensures that every note is delivered exactly as intended.

External Clock Support
Accurate timing is key to capturing every musical nuance. By supporting external high-precision clock, the DAC-Z10 takes clock stability and accuracy to the next level.

FPGA Redefined
The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.

Capturing Every Nuance of the Music
The DAC-Z10 lets every listener hear the true sound. With ultra-low distortion and wide dynamic range, every note is crystal clear.

Multi-Core USB Audio Processor
The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.

Grounding Post
The DAC-Z10’s grounding post channels noise away, eliminating even minor interference and preserving the purity of each note.

8-Mode IIS Digital Audio Input
Via IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.

Isolated AES/EBU Input
To preserve signal purity, the DAC-Z10 features a dedicated isolated AES/EBU input, fully separating electrical noise between front-end and back-end devices. This isn’t just an engineering solution—it’s our commitment to pure sound.

HDMI ARC Integration
The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.

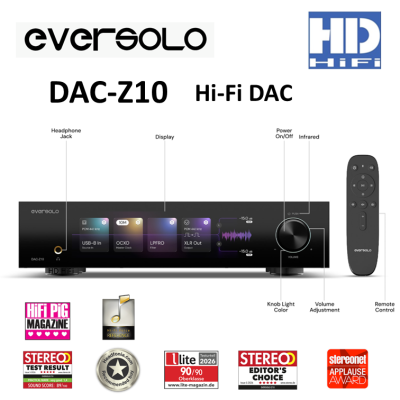

6.35mm Headphone Amplifier Module
The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.

High Quality Bluetooth Module
The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.

Basic Parameters
Model
Eversolo DAC-Z10

Display
8.8" IPS

Chassis Material
Aluminium alloy

Main Processor
DCP8568

DAC
Left Channel: AK4191+AK4499

Right Channel: AK4191+AK4499

Audio Processor
Multi-core USB audio processor

OPA Chip
OPA1612

Power
Triple ultra-low noise linear power supplies

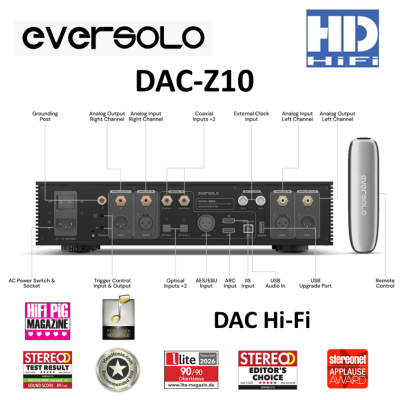

Audio Inputs and Outputs
Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols

USB-B Audio Input
Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit

IIS Input
Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit

AES/EBU Input
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Optical Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

Coaxial Audio Inputs *2
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP

ARC Input
Up to Stereo PCM 192KHz/24Bit

Analog Audio Inputs
XLR (Balanced), RCA

Analog Audio Outputs
Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended

External Clock Input
Supports 10M/25M clock inputs with 50Ω or 75Ω impedance

Recommended Headphone Impedance
16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)

Audio Characteristics
XLR Output Audio Characteristics
Output Level (Vrms): 5Vrms @ 0dBFS

THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)

Noise @ No-wt: <1.2uVrms

SNR @ A-wt: 130dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -130dB

DNR @ A-wt: 130dB

RCA Output Audio Characteristics
Output Level (Vrms): 2.5Vrms @ 0dBFS

THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)

Noise @ No-wt: <1.5uVrms

SNR @ A-wt: 128dB

Frequency Response: 20Hz–20kHz (±0.1dB)

Crosstalk: -123dB

DNR @ A-wt: 128dB

Headphone Audio Characteristics (Low Gain Mode)
Output Level (Vrms): 4Vrms @ 0dBFS

THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 124dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 124dB

Headphone Audio Characteristics (Mid Gain Mode)
Output Level (Vrms): 5.6Vrms @ 0dBFS

THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 126dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 126dB

Headphone Audio Characteristics (High Gain Mode)
Output Level (Vrms): 7Vrms @ 0dBFS

THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)

Noise @ No-wt: <2.5uVrms

SNR @ A-wt: 127dB

Frequency Response: 20Hz–20kHz (±0.1dB)

DNR @ A-wt: 127dB

Other Information
Power Supply
AC 110~240V 50/60Hz

USB Port
USB2.0*1（only for firmware upgrade）

Control Methods
Touchscreen control, remote control, mobile App control

Rated Power Consumption
32W

Dimensions
365mm (L) × 310mm (W) × 88mm (H) (including foot pads) / 78mm (excluding the foot pads)

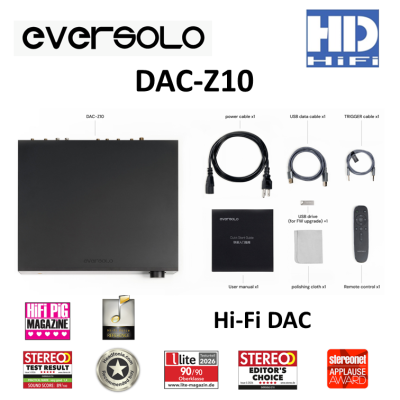

Packing List
Remote control ×1, power cable ×1, USB data cable ×1, USB drive (for FW upgrade) ×1, TRIGGER cable ×1, polishing cloth ×1, user manual ×1
