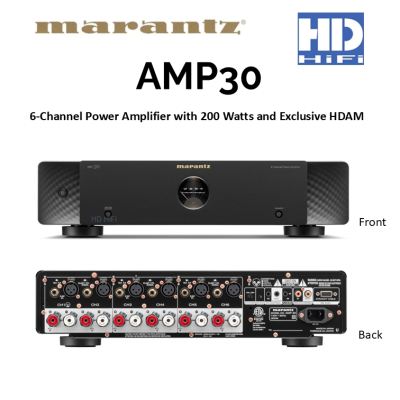

Marantz AMP30 6-Channel Power Amplifier with 200 Watts and Exclusive HDAM

MARANTZ AMP-30 (Black)
6-Channel Power Amplifier with 200 Watts and Exclusive HDAM

Elevate your home theater experience with the Marantz AMP 30, a reference-grade 6-channel power amplifier engineered for extraordinary detail, lifelike dynamics, and immersive spaciousness. Crafted in Shirakawa, Japan, and meticulously tuned by the Marantz Sound Master, the AMP 30 combines a slimline form factor with formidable Class D amplification and exclusive HDAM technology. Whether you are powering a dedicated 6-channel surround setup, bi-amping your main speakers, or integrating it into a larger system with the Marantz AV 30, the AMP 30 delivers the warm, rich, and dynamic sound that Marantz is globally renowned for.

Key Features

Commanding Power: Delivers a robust 200 Watts per channel into 8 ohms, and up to 400 Watts into 4 ohms, ensuring ample headroom for the most demanding speaker loads.
Flexible Output Modes: Customize your home theater configuration with Bridge-Tied Load (BTL) mode to combine channels for a massive 400W output, or utilize Bi-Amp mode to drive the high and low-frequency sections of your loudspeakers independently for ultimate sonic purity.
Exclusive Marantz HDAM: Incorporates custom Hyper Dynamic Amplifier Modules (HDAM) for rapid signal response, minimized noise, and ultra-low distortion, preserving the true emotional impact of your audio.
Reference-Grade Connectivity: Features fully isolated Balanced (XLR) and Unbalanced (RCA) line-level inputs for pristine signal transfer, alongside premium, gold-plated SPKT-1+ speaker binding posts.
Seamless System Integration: Designed to pair perfectly with the Marantz AV 30 preamplifier. Power and illumination settings sync effortlessly via the included amp control cable for a unified operational experience.
Timeless, Functional Design: Showcases the iconic Marantz porthole analog level meter, subtle front-panel illumination, and a robust 4.4-inch chassis that saves rack space without compromising structural integrity.

Technical Specifications


Amplifier Type
Class D Power Amplifier
Number of Channels
6
Power Output (8 Ohms)
200 W per channel (1 kHz, 0.05% THD, 2ch driven)
Power Output (4 Ohms)
400 W per channel (1 kHz, 0.7% THD, 2ch driven)
BTL Output (8 Ohms)
400 W (Bridged Mode)
Inputs
6 x Balanced (XLR), 6 x Unbalanced (RCA)
Outputs
6 x SPKT-1+ Speaker Binding Posts
Control Terminals
RS-232, IR Flasher In, Marantz Remote Bus, DC Trigger In/Out
Power Consumption
300 W (Operation) / 0.2 W (Standby)
Dimensions (W x D x H)
17.4" x 17.4" x 4.4" (442 x 442 x 112 mm)
Weight
22.0 lbs (10 kg)
Manufacturing Origin
Made in Shirakawa, Japan
