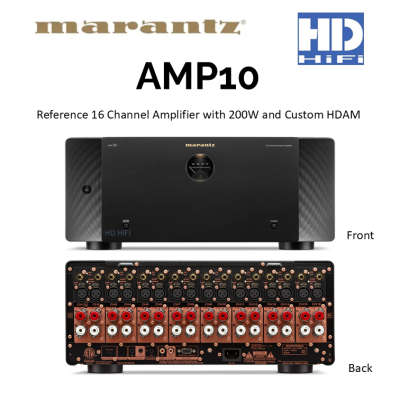

Marantz AMP10 Reference 16 Channel Amplifier with 200W and Custom HDAM

MARANTZ AMP-10 (Black)
Reference 16 Channel Amplifier with 200W and Custom HDAM

Engineered with best-in-class technologies, AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.

Crafted in Shirakawa, Japan
16 Channels
200 Watts per Channel
Custom HDAM
Custom Switching Amplifiers
Selectable Output Modes

Exquisite Design

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

Ultimate Performance

We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

Sound Master Tuned

The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Leader

AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.


Specifications

Multi-Room CI

IP Control / RS232 Control / Web Control / App Control No / Yes / No / No
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Input/ Output 1 / 1
Others
Front Display Level Meter
Firmware Update by Network / USB / RS232C No / No / No
Auto Power off Yes
Inputs Outputs
Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
Speaker Terminal SPKT-1+
Number of Speaker Terminals 16
Bi-Amp Drive /BTL Drive Yes / Yes
Level Meter Yes
Chasiss Copper Plated
Specifications
Number of poweramps 16
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
70% Guarantee(Normal/Bi-Amp/BTL) Yes
100% Guarantee(Normal/Bi-Amp) Yes
General
Metal Front Panel Yes
Pre-Programmed / Learnable / LCD Display No / No / No
Power Consumption in W 500
Power Consumption No-Sound in W 140W
Standby Consumption in W 0.2
Maximum Dimensions 【 17.4 x 19.2 x 7.4 】
Weight in lbs. 43.7
What's in the box Main unit, quick start guide, AC cord,
Amp control cable, Remote control cable,
SP terminal wrench
