Monitor SE loudspeakers benefit from Paradigm’s fundamental research into the science of sound. This research, conducted by Paradigm in conjunction with the Canadian National Research Council, has resulted in many of the innovative materials and patented audio technologies found throughout the Paradigm speaker.

Realism in Audio

Imagine lifelike musical performance in any listening space; breathtaking effects and realistic imaging details that bring your movies to life.

Tweeter

X-PAL™ Pure-Aluminum Dome Tweeters with patented† Perforated Phase-Aligning (PPA™) Lens. This exclusive design acts as a refined phase plug, blocking a wide range of out-of-phase frequencies which increases and smooths output without coloring the sound.

Both visually stunning and functional, our signature PPA Lens technology improves performance while also protecting the tweeter from getting damaged.

Bass/Midrange
High-performance mineral-filled polypropylene cones with inverted dust caps are lightweight and rigid. Downroll surrounds give them a clean, low-profile look.

DESIGN
2-driver, 2-way bass reflex, bookshelf
CROSSOVER
2nd-order electro-acoustic at 2.3 kHz
HIGH FREQUENCY DRIVER
1” (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens
FREQUENCY RESPONSE ON-AXIS
±3dB from 61 Hz - 21 kHz
FREQUENCY RESPONSE 30° OFF-AXIS
±3dB from 55 Hz - 17 kHz
MID/BASS FREQUENCY DRIVER
5-1/2” (140mm) mineral-filled polypropylene cone / inverted dust cap / downroll surround
SENSITIVITY ROOM / ANECHOIC
89 dB / 86 dB
LOW FREQUENCY EXTENSION
45 Hz (DIN)
SUITABLE AMPLIFIER POWER RANGE
15 - 100 watts
MAXIMUM INPUT POWER
50 watts
IMPEDANCE
Compatible with 8 ohms
DIMENSIONS HXWXD
12.75" × 7.125 × 11" (32cm × 18 × 27cm)
WEIGHT
12 lbs. (5.4 kg)

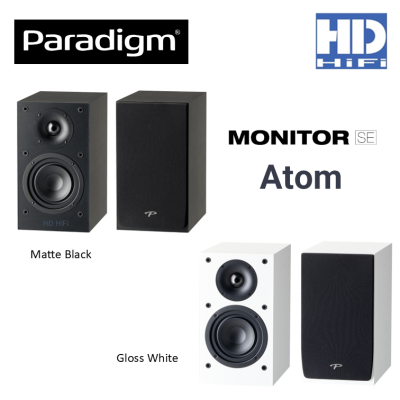

FINISHES
Matte Black, Gloss White
