ProJect JukeBox E All-in-one Plug & Play turntable system

Audiophile “All-in-one Plug & Play“ turntable system




BT & line input with included power amplifier!




Juke Box E is a record player, phono stage, BT receiver, line pre-amplifier and power amplifier in one, requiring only a pair of speakers to make a complete system. If you thought that a starter turntable system is complicated to set up, Juke Box E proves the contrary. This belt-drive deck offers the fastest possible installation process because it comes pre-adjusted out of the box and offers superb sound quality. Tracking force and anti-skating is pre adjusted for the pre-mounted Ortofon OM 5E cartridge.




The Juke Box Highpower Supply is available optionally. It features up to 50% more peak power output, increasing dynamic and bass response. The true ground connection over a 3 pin power plug can dramatically reduce hum and noise under critical power conditions.

Technical Specifications

Power output 2 x 50 Wats (4 Ohm)

Outputs Speakers, Line out (fixed), Phono out

Inputs BT, 1x Line (analogue)

Speed 33, 45 (manual speed change)

Principle Belt drive

Speed variance 33: 0.8% 45: 0.7%

Wow & flutter 33: 0.29% 45: 0.27%

Platter 300 mm particleboard with felt mat

Main bearing Stainless steel in bronze bushing

Tonearm 8.6” aluminium

Effective arm length 218.5 mm

Overhang 22.0 mm

Effective tonearm mass 8.0 g

Counterweight for mass 3 - 5.5g (pre-mounted)

Tracking force range 0 - 25mN (OM5e 18mN pre-adjusted)

Included accessory Power supply, dust cover, remote control

Power consumption 110W max

Dimensions 415 x 118 x 334mm (WxHxD)

Weight 5 kg net




Features




Instant playback with super-easy setup

High contrast display on top

BT and 1 line input

Line record output

Gold plated sockets

Pre-adjusted tracking force & anti-skating force

Ortofon OM5e cartridge, pre-mounted

8.6” aluminium tonearm with sapphire bearings

Belt drive with silicone belt

Low vibration synchronous motor & DC power supply

Special feet for effective decoupling

IR remote control included

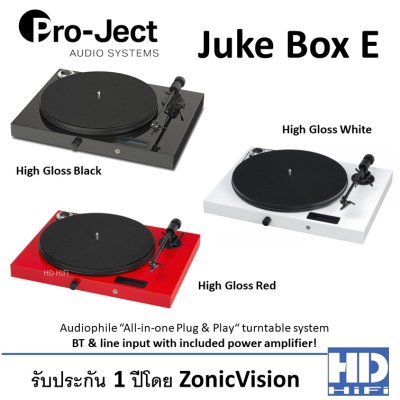

Colour options: HG Black, HG White, HG Red










In the box:




Juke Box E with Ortofon OM 5E cartridge

Remote control incl. batteries

Felt mat

Dust cover

Adapter for 7“ singles

Power supply

Allen key, stylus pressure gauge, gloves
