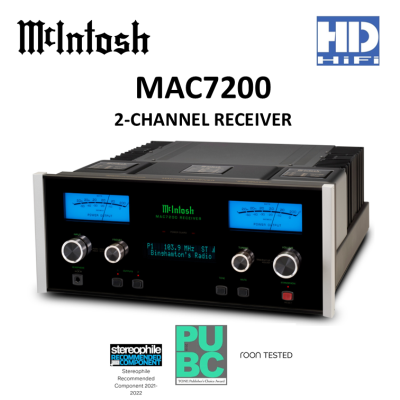

Mcintosh MAC7200 2-Channel Receiver

With 200 Watts per channel, 15 inputs and a high-performance AM/FM tuner, the MAC7200 Receiver is a music lover’s dream. We’ve been making tuners since the 1950s and they are one of the hallmarks of McIntosh, with the groundbreaking MR78 FM Tuner from 1972 considered an all-time classic in the audio industry. The built-in AM/FM tuner in the MAC7200 comes from that same illustrious line of McIntosh tuners and will pick up your favorite radio stations with unparalleled clarity and a realism that is free from noise and distortion.

The MAC7200's advanced signal quality monitor can display the multipath and noise levels of the incoming RF signal to help fine tune antenna placement for optimal reception. Dedicated PRESET and TUNING knobs enable easy radio operation. The FM tuner includes Radio Data System (RDS) support, allowing it to display optional information sent by radio stations such as the station’s name and call letters as well as the name of the artist and song being played. It features 20 presets for each radio band as well as a remote AM antenna.

Electronic Specifications
FTC Power Output Rating
200 W
Power Output per Channel
200 W into 2, 4, or 8 ohms
Number of Channels
2
Rated Power Band
20Hz to 20kHz
Total Harmonic Distortion
0.005%
Dynamic Headroom
2dB
Frequency Response +0,-0.5dB
20Hz to 20kHz
Frequency Response, +0, -3dB
10Hz to 100kHz
Sensitivity Phono (Moving Coil)
0.25mV
Sensitivity Phono (Moving Magnet)
2.5mV
Sensitivity High Level (Balanced / Unbalanced)
0.5V/0.25V
Sensitivity (Power Amp input)
1.4V
Signal To Noise Ratio (Moving Coil)
80dB
Signal To Noise Ratio (Moving Magnet)
82dB
Signal To Noise Ratio (High Level)
95dB
Signal To Noise Ratio (Power Amp input)
113dB
Input Impedance (Balanced / Unbalanced)
20K/20K
Damping Factor
>40
Maximum Output (Balanced / Unbalanced)
8V Unbalanced

Connectivity
Balanced Input
1
Unbalanced Input
5
Phono Input Moving Coil
1 (adjustable loading)
Phono Input Moving Magnet
1 (fixed loading)
Upgradeable Digital Audio Module
Yes: DA2
Digital Coaxial Input
2
Digital Optical Input
2
Digital MCT Input
1
Digital USB Input
1
HDMI (ARC) Input
1
Balanced Variable Output
0
Unbalanced Fixed Output
0
Unbalanced Variable Output
2
Headphone Output
1/4" High Drive with Headphone Crossfeed Director (HXD®)
AM/FM Tuner option
Included
Home Theater PassThru
Yes
Unbalanced Analog Connector Type
Standard
Speaker Binding Post Type
Standard
Service Port
1

Digital Audio Specifications
Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
Digital Coaxial Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital Optical Input Sample Rate
24-bit/44.1kHz to 192kHz
Digital MCT Input Sample Rate
16-bit/44.1kHz (CD)
DSD64 (SACD)
Digital USB Input Sample Rate
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DSD512, DXD352.8kHz, DXD384kHz
FM Specifications
Tuning Range
87.9MHz - 107.9MHz (USA)
87.5MHz - 108.0MHz (Europe)
76MHz - 90MHz (Japan)
Channel Spacing
200kHz (USA)
50kHz (Europe50)
100kHz (Europe100, Japan)
Antenna Input
75 ohms, Type “F” Coax connector
FM Analog Specifications
Useable Sensitivity
2.2uV (18.1dBf)
50dB Quieting Sensitivity
1.5uV (14.8dBf)
Signal To Noise Ratio
Mono: 70dB
Stereo: 68dB
Frequency Response
±1dB 20Hz to 15,000Hz
Total Harmonic Distortion
Mono: 0.4%
Stereo: 0.8%
Channel Selectivity
60dB Adjacent Channel
66dB Alternate Channel
Stereo Separation
38dB
AM Specifications
Tuning Range
530kHz - 1720kHz (USA)
522kHz - 1602kHz (Europe)
522kHz - 1611kHz (Japan)
Channel Spacing
10kHz (USA)
9kHz (Europe, Japan)
Antenna Input
Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)
AM Analog Specifications
Selectivity
45dB Adjacent Channel
Signal To Noise Ratio
50dB
Frequency Response
0dB, -6dB 50Hz to 3,000Hz
Total Harmonic Distortion
0.5%
Sensitivity
350uV/m
Control
Tone Controls
Bass and Treble
Tone Bypass and Input Assign
Yes
RS232 Control Input
Yes
Power Control Output
1 Main, 2 Trigger
Rear Panel Data Port
4
Rear Panel IR Sensor Input
Yes
Input Level Match
Yes
General Specifications
Vacuum Tube or Solid State
Solid State
Output Type
Autoformer™
Output Meters
Yes
Dual Layer Chassis
Yes
Chassis Finish
Black painted steel
McIntosh Monogrammed Heatsinks™
Yes
Power Requirement
120V 50/60Hz, 4.4 amps
Standby Power Requirement
<0.25 Watts
Weights & Dimensions
Unit Dimensions (W x H x D)
17-1/2" (44.5cm) x 7-5/8" (19.4cm) x 18-3/4" (47.6cm)
Unit Weight
75 lbs (34.1 kg)
Shipping Weight
93 lbs (42.3 kg)
