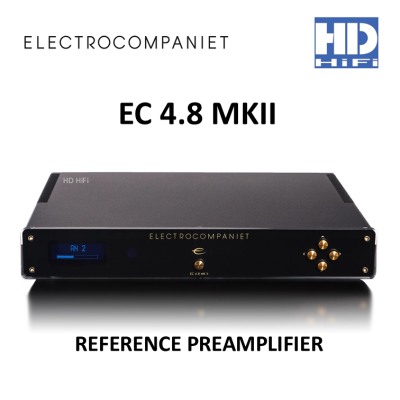

ELECTROCOMPANIET EC 4.8 MKII Reference Preamplifier

ELECTROCOMPANIET
EC 4.8 MKII Reference Preamplifier

With its outstanding performance, excellent resolution, superb control and precise musical reproduction, we have made a preamplifier that is true to our slogan, “Closing the gap to the master”. Our new two-channel EC 4.8 MKII preamplifier enhances the predecessor, and is sure to make all good power amplifiers sound even better!

All measurements are made at 120V / 240V  //50Hz / 60Hz



Input impedance
47 Kohm
Output impedance
100 ohm
Max input
+-15 Vp-p ( +- 30Vp-p Bal)
Max output
+-30 Vp-p ( +- 30Vp-p Bal)


Minimum gain
-111dB
Maximum gain
6dB
Noise Floor(0 dB gain)
< -130 dB
Frequency responce
1 – 200 kHz
Channel Seperation
> 120dB
THD (1V in, 1V out)
<0.002%




Power consumption (no load or signal)
30 W


Dimensions and Waight

Width
470 mm – 18.5 inches
Depth
372 mm – 14.64 inches
Height
80 mm – 3.14 inches
Weight
11.3 kg – 24.9 lbs

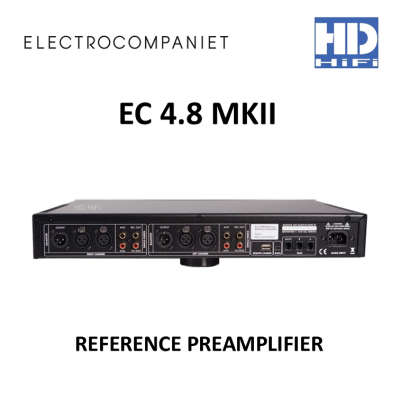

Inputs

Balanced
2 x 2 channel
Single ended
3 x 2 channel


Control Ports

Nettwork
3 x SPAC
Programming
1 x USB


Outputs

Balanced
1 x 2 channel
Single ended
Record Out
