WiiM Vibelink Amp DAC Amplifier 100W/Ch

Power. Precision. Pure Performance.

Designed for music lovers and home theater enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8Ω and 200W per channel at 4Ω, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.

Premium Build, Modern Aesthetic

Crafted from a sleek, unibody aluminum chassis, the WiiM Vibelink Amp offers exceptional durability and peak performance. Its premium, minimalist design blends seamlessly into any audio setup, whether on a media console or in a high-end rack. Engineered with advanced thermal management, including a copper heat pipe and a large aluminum heatsink, it ensures efficient cooling and long-term reliability, even under demanding conditions.

High-Fidelity Audio with Premium Components

Equipped with a premium ESS 9039Q2M DAC, TI TPA3255 amplifier chip, and six TI OPA1612 op-amps, the WiiM Vibelink Amp delivers ultra-low distortion and noise, revealing details often lost in standard amplifiers. Supporting high-resolution audio up to 192kHz/24-bit, it preserves the integrity of every recording while enhancing dynamic range for a richer, more immersive listening experience.

Post Filter Feedback Technology

At the core of the WiiM Vibelink Amp’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.

Advanced Thermal Management

High-power amplification generates heat, but the WiiM Vibelink Amp stays cool under pressure with advanced thermal management:

Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume.

Large Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.

Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.

The Vibelink Amp is designed with modern convenience in mind. With Auto Standby Mode, it automatically powers down after 30 or 60 minutes of inactivity, saving energy without compromising performance. The 12V Trigger In enables instant activation when connected to compatible devices, making it a smart and efficient addition to your home audio setup.

The WiiM Vibelink Amp delivers bit-perfect 192kHz/24-bit playback via Optical and Coax inputs, ensuring zero signal loss and true-to-source audio fidelity. Unlike conventional amplifiers that alter or resample audio, it preserves every detail with pristine clarity, depth, and dynamic range, making it the ultimate choice for audiophiles.

Dimensions： 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm)

Weight： 2.05 kg (4.5 lbs)

Power input: 100-240V, 50/60Hz AC, 3A Max

• Output Power : 100W per channel at 8Ω (stereo)

• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology

• Total Harmonic Distortion (THD+N) : ≤0.0005%

• Signal-to-Noise Ratio (SNR) : ≥120dB

• Frequency Response: 20Hz – 20kHz ± 0.5dB

• Impedence Range: 3~8 ohms

• Premium DAC : ESS 9039Q2M high-performance DAC

• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio

• Dynamic Range : ≥120dB for high-resolution sound

• Pure Analog Input : No ADC conversion, maintaining signal integrity

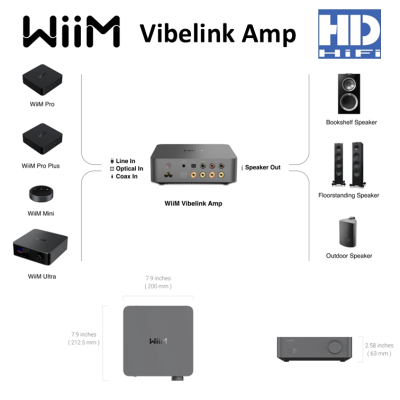

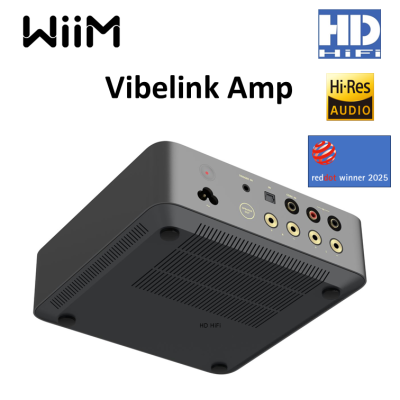

Analog Inputs:

• 1x RCA Stereo (Line-In, pure analog signal path)

✅ Digital Inputs:

• 1x Optical (TOSLINK) – Up to 192kHz/24-bit

• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit

✅ Speaker Outputs:

• Gold-plated binding posts (supports banana plugs or bare wire connections)

✅ Trigger & Power Management:

• 12V Trigger In: Auto power-on with compatible devices

• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

PCM up to 192kHz/24-bit (through digital sources)

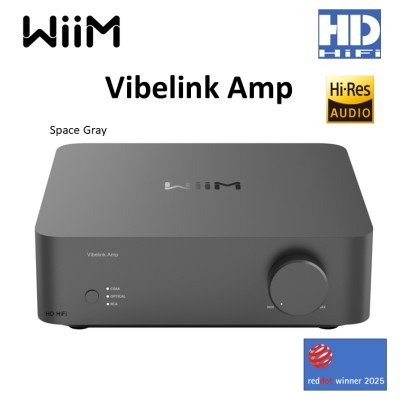

Volume Knob: Adjusts volume

LED Indicator: Three 4-color RGBW LED indicates source input and device status

• Chassis: Premium unibody aluminum for durability & heat dissipation

• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control

• Cooling System: Passive, silent operation

Use Guide *1

Power Cable *1

RCA Cable *1

Optical Cable *1

Banana Plugs *4
