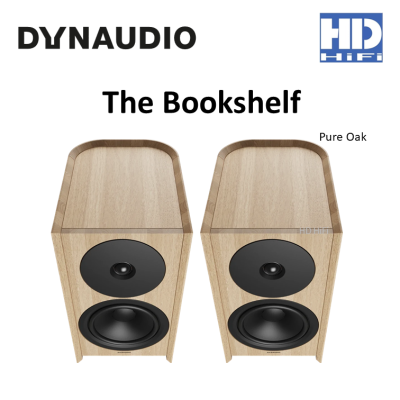

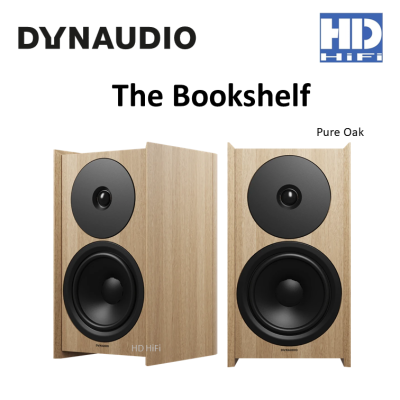

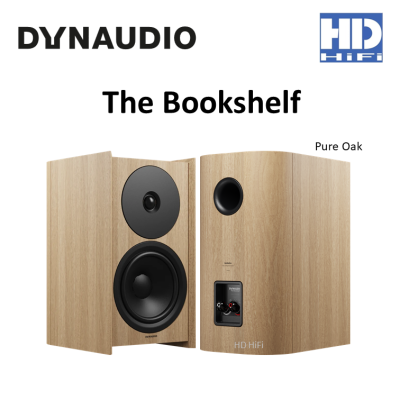

DYNAUDIO The Bookshelf

• Japanese craftsmanship

• Danish sound-tuning
• Designed in Tokyo

There’s a kind of beautiful alchemy between Denmark and Japan. We’re half a world apart, but we share the same obsession with meticulous craft and honest simplicity. There’s even a word for it: ‘Japandi’.

 The Booshelf ราคาคู่ละ 380,000 บาท

 ขาตั้ง Stand ราคาคู่ละ 110,000 บาท

The Bookshelf blends Denmark’s world-famous, no-nonsense design and Japan’s incredible skill with precision woodcraft techniques.

This exclusive premium loudspeaker comes from a three-cornered partnership. It’s designed by the award-winning Keiji Ashizawa studio in Tokyo. The artisans at Karimoku make the cabinets using traditional techniques on sustainable oak from Japan’s beautiful Hokkaido area. And it’s assembled, fitted with cutting-edge audio technology, and lovingly tuned to acoustic marvellousness at Dynaudio headquarters in Denmark.

Going against the grain
Making a speaker like this isn’t easy. Especially when you decide to explore new materials, as well as (some might say) radical design ideas. At the same time. And still have it sound like a quintessential Dynaudio speaker.

If you were to cut the speaker neatly in half (which we wouldn’t recommend, but which you are of course free to do if you want to void your warranty), you won’t see MDF. Instead you’ll see one of Karimoku’s hallmarks: bespoke engineered wood. It’s a technique the company has developed for its super-high-end furniture, and it’s created this version specifically for The Bookshelf.

Karimoku has a motto: ‘High-tech, high-touch’. It uses technology to enhance precision in processing, and then relies on skilled artisans to finish things off. The result: a cabinet that’s as much a high-end living-room essential as it is a piece of cutting-edge sonic artistry.

Intelligent design


It isn’t easy to design a speaker like this, either. Especially if – like our good friend Keiji Ashizawa – your usual comfort-zone is designing high-end homes, furniture and hotels. He isn’t wrong when he says that “simple things are quite difficult to make”. Every detail has to be perfect. Every line, corner, chamfer and radius carefully considered. Then altered. Then considered some more.

The goal was to create a shape that people not only love the look of – but one they want to touch. A simple, yet ‘kawaii’ look. It works as a speaker design, of course – but also as a piece of furniture.

The prominent ‘shelf’ on the top. The seamless way the curves blend in and carry that distinctive ridge to cascade down the front of the cabinet. The utter simplicity of the two black drivers on the front, and the minimalist terminals around the back.

Tell us you don’t want to reach out and run your hand around those lines before you play your favourite music, and we simply won’t believe you…

Calling the tune


Making it is difficult. Designing it was difficult. Tuning? Also decidedly not-easy. Those high-design details created some challenges for our engineers – and the cabinet construction meant that we had to find some ingenious solutions for internal bracing and support (including foam under specific compression that pushes back on the inside of the cabinet). Still, our team aren’t truly content unless they’re scratching their heads…

It’s a good thing, then, that they were starting out with top-shelf components. High frequencies are handled by the Esotar 3 – our 28mm soft-dome tweeter with Hexis inner dome, that’s fast becoming a legend since its introduction in 2018. You might notice that it’s fronted by a hefty solid aluminium faceplate: no screws, and reminiscent of the classic Dynaudio T330 design.

Midrange and bass come courtesy of a tweaked Confidence 20 driver: an 18cm NeoTec MSP unit with an aluminium voice coil, glass-fibre voice-coil former, high-power neodymium magnet system and innovative venting system for maximum performance.

The crossover is bespoke: months of iterative testing, listening, measuring and modification have addressed directivity, diffraction and reflection puzzles. Combined with millimetre-perfect port tuning using our sophisticated dual-flared design, our team found the ideal blend for the ideal sound.

As one put it, it’s the speaker that makes him smile the most. Because it’s a true Dynaudio.

We hope it’ll make you smile, too.

Status Current
Segment Home
Series The Bookshelf
Type Bookshelf
Sensitivity (dB @ 2.83V/1m) 86
IEC Power Handling (W) 180
Rated Impedance (Ohm) 4
Box Principle Bass reflex rear ported
Crossover 2-way
Crossover Frequency (Hz) 2700Hz
Crossover Topology 1st / 2nd order
Tweeter 28mm Esotar 3
Woofer 18cm MSP cone
Weight kg 9.72
Weight lbs 21.5
Width mm 222
Height mm 405
Depth mm 300
Width mm incl. feet/grill/stand 390
Height mm incl. feet/grill/stand 1000
Depth mm incl. feet/grill/stand 360
Packaged Width mm 377
Packaged Height mm 444
Packaged Depth mm 512
