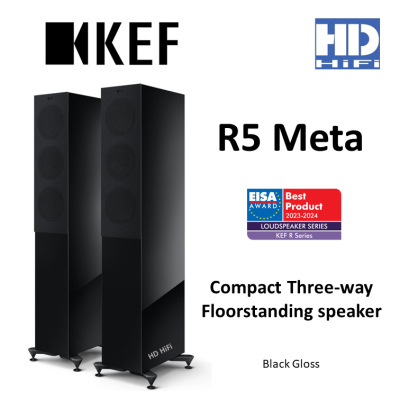

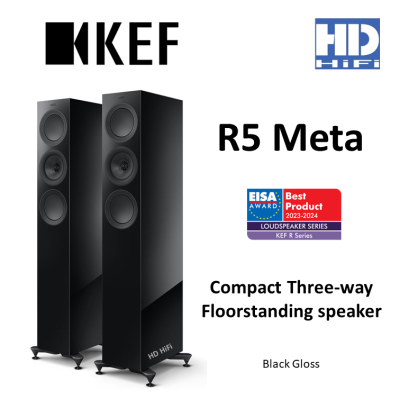

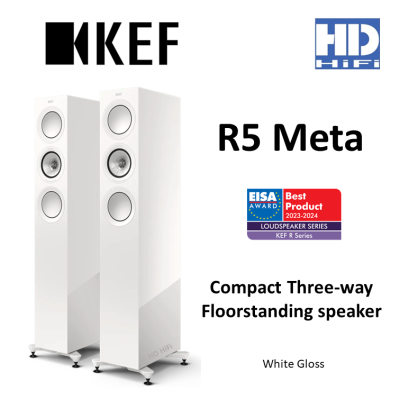

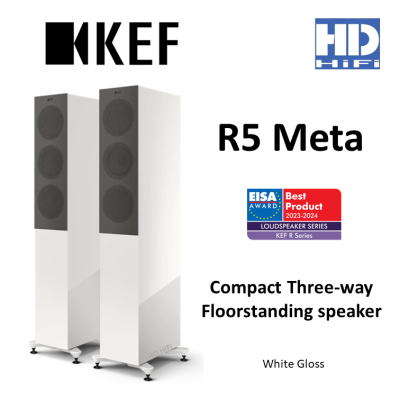

The slim and elegant R5 Meta is compact, but it is more than capable of delivering highly detailed sound and deep, clean bass. It boasts the 12th generation Uni-QÂŪ driver array with MATâĒ and two 5.25â hybrid aluminium bass drivers. It can work as a stereo pair or as surround speakers as part of an ultimate R Series home theatre system.
What is in the box
R5 Meta Microfiber grille Plinth and spike accessories Port bungs User manual and warranty information
DESIGN Three-way bass reflex DRIVE UNITS Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT MF: 125 mm (5 in.) aluminium cone Bass Unit: LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone CROSSOVER FREQUENCY 400 Hz, 2.7 kHz FREQUENCY RANGE (-6dB) 38 Hz - 50 kHz TYPICAL IN-ROOM BASS RESPONSE (-6dB) 29 Hz FREQUENCY RESPONSE (Âą3dB) 52 Hz - 28 kHz
HARMONIC DISTORTION (90dB, 1m) <1% 75 Hz and above <0.5% 110 Hz - 20 kHz MAXIMUM OUTPUT 110 dB AMPLIFIER REQUIREMENTS 15 - 200W NOMINAL IMPEDANCE 4 ÎĐ (min. 3.2 ÎĐ) SENSITIVITY (2.83V/1m) 87 dB
WEIGHT *24.5 kg (54.0 lbs) DIMENSION (H x W x D) WITH TERMINAL *1025 x 175 x 344 mm (40.4 x 6.9 x 13.5 in.) DIMENSION (H x W x D) WITH TERMINAL WITH PLINTH *1072 x 272 x 344 mm (42.2 x 10.7 x 13.5 in.)
