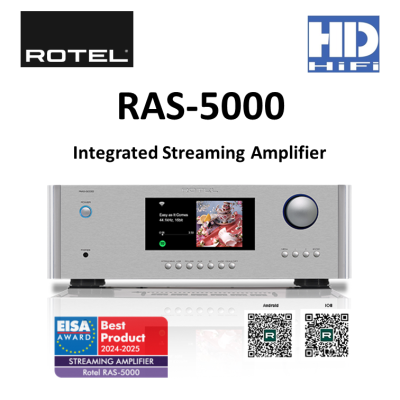

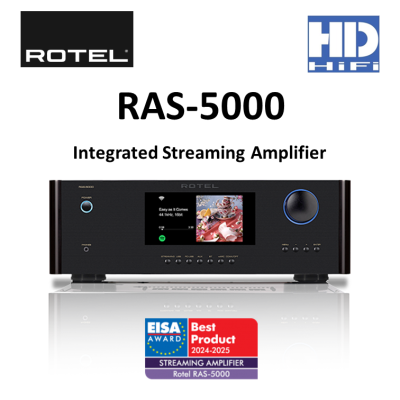

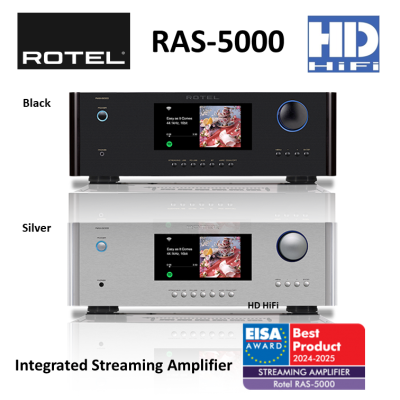

ROTEL RAS5000 Integrated Streaming Amplifier

Simplicity and performance meet in the Rotel RAS-5000 designed to effortlessly fit into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX™ HD Bluetooth.

The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.

Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.
Power Output
220 Watts / ch (4 Ohms)
140 Watts / ch (8 Ohms)


Dimensions (W × H × D)
431 x 144 x 425 mm
17” x 5 7/8” x 16”

FRONT PANEL HEIGHT
132.6 mm / 5 1/4”

Power Requirements
120V, 60Hz

Power Consumption
380W

Standby Power Consumption
<0.5W

Net Weight
15.7 kg, 34.6 lbs

HDMI
Support eARC function

Coax/Optical Digital Input Signals
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Ready
