B&W Bowers&Wilkins 801 D4 SIGNATURE

B&W Bowers&Wilkins 801 D4 SIGNATURE

The 801 D4 Signature tower speaker features optimized technologies, including that all-important Diamond Dome tweeter and Solid Body Tweeter-on-Top, an all-new tweeter grille, and upgraded crossover.

Optimized for perfection
The 801 D4 Signature is an optimized version of our most advanced loudspeaker. It features meticulously evolved technology, carefully crafted design, and unique finishes that culminate in the pinnacle of performance. This is Bowers & Wilkins' flagship loudspeaker perfected.

Diamond Dome tweeter
One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond Dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. Fifteen years after we introduced it, we haven't found a better tweeter dome technology.

Solid Body Tweeter
Our Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille, producing an even more free and open sound with high frequencies.

Upgraded crossover
Our 801 D4 Signature uses upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Aluminum top-plate
Every new 800 Series Signature model has a significantly upgraded cabinet design with an all-new, optimized aluminum top section for even greater stiffness. The same design also provides a perfect mounting point for Leather by Connolly cabinet detailing, with luxurious full-grain blue leather for our Midnight Blue Metallic models and full-grain black leather for our California Burl Gloss models.

Technical specifications

Technical features
Diamond tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Anti-Resonance plug
Biomimetic Suspension
Turbine Head
Matrix™
Aerofoil™ Profile bass cones
Flowport™"
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond Dome high-frequency
1x ø150mm (6in) Continuum™ cone FST™ midrange
2x ø250mm (10in) Aerofoil™ Profile bass
Frequency range
-6dB 13Hz - 35kHz
Frequency response
15Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
90dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 30Hz – 20kHz
<0.3% 100Hz – 20kHz
Nominal impedance (min)
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 1000W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 1221mm (48.1in)
Width: 451mm (17.8 in)
Depth: 600mm (23.6 in)
Net weight
100.60kg (221.8 lb)
Cabinet

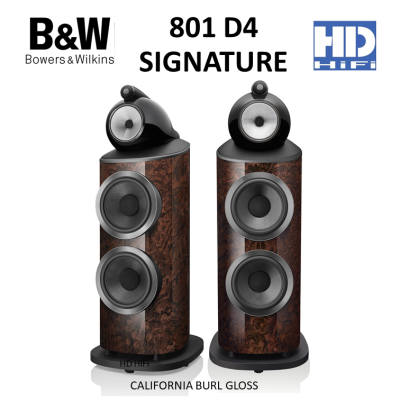

California Burl Gloss

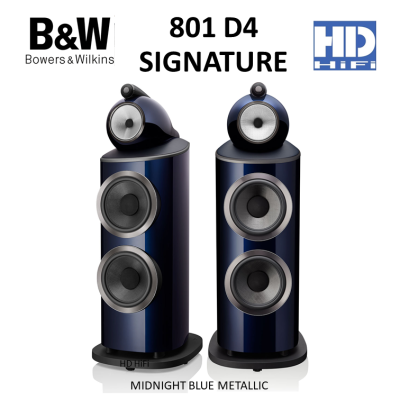

Midnight Blue Metalli
Grille
Black
Black
