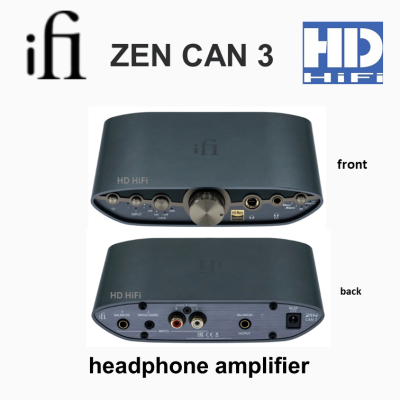

iFi ZEN CAN 3 headphone amplifier

In today's busy, fast-paced, and noisy world, we recognize the transformative power of music. Our new headphone amplifier, with its sleek design and unparalleled performance, immerses you in a world of pure harmony. Rediscover your music and experience true purity with the ZEN CAN 3




Specifications

ANALOGUE INPUTSSE RCA L/R:

2.0V nominal @ 0dBFS, 1MegOhm Zin




SE 3.5mm:

1.0V nominal @ 0dBFS, 1 MegOhm Zin




BAL 4.4mm:

4.0V nominal @ 0dBFS, 24kOhm ZinDIMENSIONS158x117x35mm (6.2x4.6x1.4”)DNRLine Section:

≥119dB(A)




Headphone Section:

BAL 4.4mm: ≥119dB(A) @ 0dBFS

SE 6.35mm: ≥119dB(A) @ 0dBFS

FREQUENCY RESPONSE10Hz-200kHz (-3dB)GAIN0dB, 6dB, 12dB, 18dBHEADPHONE OUTPUT MAXHeadphone Section:

BAL 4.4mm:>15.1V/385mW (@ 600 Ohms), >6.2V/1,200mW (@ 32 Ohms)

SE 6.35mm: >7.6V/98mW (@ 600 Ohms), >7.2V/1,600mW (@ 32 Ohms)

HEADPHONE OUTPUT RMSHeadphone Section:

BAL 4.4mm: >11.5V/2,000mW (@ 64 Ohms)

SE 6.35mm: >7.2V/1,600mW (@ 32 Ohms)

INPUT VOLTAGEDC:

5V/2.5A

AC 100-240V, 50/60HzMAXIMUM INPUT LEVELSE RCA:

3.8V RMS




SE 3.5mm:

1.92V RMS




BAL 4.4mm:

7.4V RMSNET WEIGHT495g (1.09 lbs)OUTPUT IMPEDANCELine Section:

<200 Ohms




Headphone Section:

BAL 4.4mm HP: <2 Ohms

SE 6.35mm HP: <1 Ohm

POWER CONSUMPTIONNo Signal: ~5W

Max Signal: ~13WSNRLine Section:

≥125dB (7.3V 4.4mm Input 0dB @ 200kOhm)




Headphone Section:

BAL 4.4mm: ≥125dB (7.3V 4.4mm Input 0dB @ 600 Ohms)

SE 6.35mm: ≥122dB (1.9V Input 0dB @ 600 Ohms)

THD+NLine Section:

0.006% (0dB 200kOhm load)




Headphone Section:

BAL 4.4mm: <0.006% (@ 360 mW/2.4V 16 Ohms)

SE 6.35mm: <0.006% (@ 100mW/1.27V 16 Ohms)
