Pro-Ject Phono Box MM/MC Phono preamp with line output

MM/MC Phono preamp with line output
Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input.
Phono Box is an ideal phono preamplifier for these hifi system and
accepts both MM and MC cartridges. The analogue output of Phono Box can
easily be connected to a line-input (AUX,…) of your amplifier.
Features
● Preamplifier for MM or MC with switch on rear panel
● Best buy classic
● DC power supply (< 1 watt standby power)
● Precise RIAA equalisation
● Low noise ICs
● Output stage with ultra-low impedance
● Gold-plated RCA sockets
● Small size for installation near recordplayer

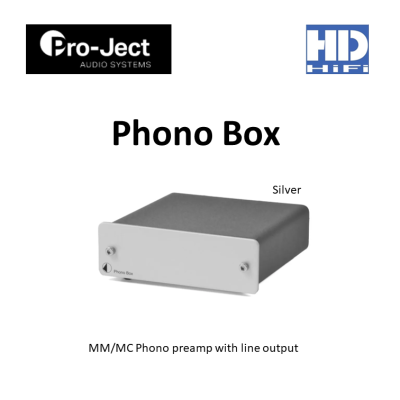

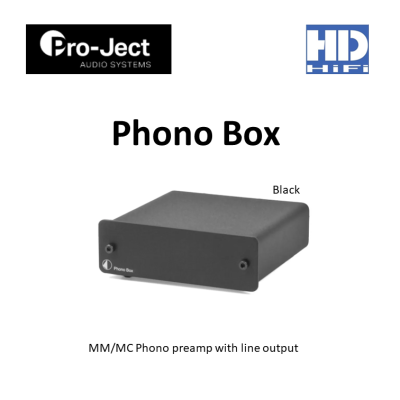

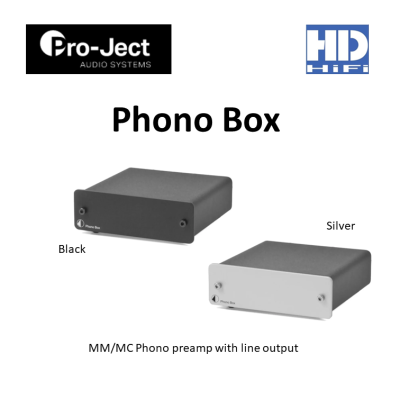

● Faceplate available in black and silver

Technical Specifications
Input impedance, MM
47 kohms/120 pF
Input impedance, MC
100 ohms / 120 pF
Gain, MM
40 dB
Output voltage typically
300 mV/1 kHz at 3 mV/1 kHz (MM input)
Gain, MC
60 dB
Output voltage typically
300 mV / 1 kHz at 0,3mV/1 kHz (MC input)
Max. output
9.5V (1kHz)
Noise floor, MM
94 dBA
Noise floor, MC
75 dBA
THD, MM
0,01%
THD, MC
0,05%
RIAA-equalisation curve accuracy
20 Hz - 20 kHz / max. 0,5 dB
Outboard power supply
18V / 200 mA DC, suitable for your country's mains supply
Standby power consumption
< 1 watts
Dimensions W x H x D
103 x 36 x 104 (115 mm with sockets)
Weight
570 g
