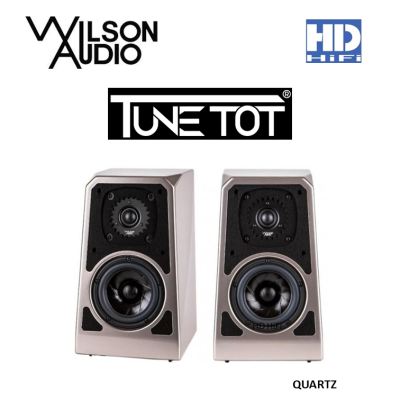

WilsonAudio TuneTOT (Quartz, Carbon, GalaxyGray : Standard Color)

TuneTot Ecosystem
 TuneTot is but one element within an ecosystem populated with custom, a la carte tools and accessories (purchased separately) designed to maximize TuneTot’s cosmetic beauty and musical performance in a wide variety of applications. Not content with designing a simple “bookshelf” loudspeaker, Wilson’s Special Applications Engineering team has, once again, redefined what is possible for these acoustically hostile installations.

Design
TuneTot is the latest product from the Wilson Special Applications Engineering™ (WSAE) team. While its name pays homage to the first WSAE product, it is a modern technical tour de force designed to offer the timbral beauty, dynamic nuance, soundstage resolution, and transparency—all the hallmarks of Wilson loudspeakers design culture—but do so in environments which are hostile to all of those qualities.

Enclosure Materials
WSAE engineers readily detect even the tiniest enclosure vibrations—at the level of billionths of a meter, which, in turn, reveals the ideal combination and geometry of the composites for the cabinet. TuneTot is constructed from two Wilson proprietary composites—the proven combination of Wilson’s X- and S-material.

Drivers
Its cabinet and driver technology are derived directly from Alexx and Sabrina.

Drivers
Woofer
5.75 inches (14.61 cm)
Tweeter
1 inch (2.54 cm)

Enclosures & Materials
Woofer
Rear Vented, Doped Paper Pulp
Tweeter
Sealed, Doped Silk Fabric

Measurements
Sensitivity
86 dB @ 1W @ 1m @ 1k
Nominal Impedance
8 ohms / minimum 6.61 ohms @ 172 Hz
Minimum Amplifier Power
25 Watts per channel
Frequency Response
65 Hz —23 kHz +/- 3 dB Room Average Response [RAR]
