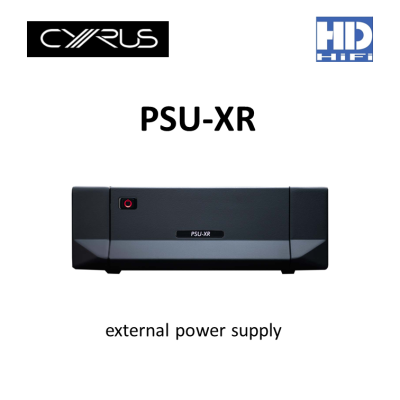

Cyrus PSU-XR external power supply

The PSU-XR is our latest external power supply and introduces a brand-new approach to providing clean and stable power for your compatible Cyrus XR host product. Incorporating its own on-board micro-processor, the PSU-XR communicates directly with the host product to consistently provide the best configuration of power from a full range of voltage output levels.

Providing multiple supplies, all of the output voltages from the PSU-XR are all digitally controlled internally, so are extremely stable and virtually noise free. The PSU-XR really is our best performing power supply, capable of providing up to 60% more power than the PSX-R2 and due to its revolutionary design, is up to 50% more efficient.


Specification

Low voltage supply - Standby mode +5V DC
Low voltage supply - Operational +5V DC
Fixed voltage supply - Standby mode 0V
Fixed voltage supply - Operational +24V DC
Variable supply - Standby mode 0V
Variable supply - Regulated +10V to +45V DC
Variable supply - Unregulated +45V or +56V DC
Size (H x W x D) 75 x 215 x 355 mm (2.95” x 8.46” x 13.98”)
Weight 7.7kg (17lbs)
