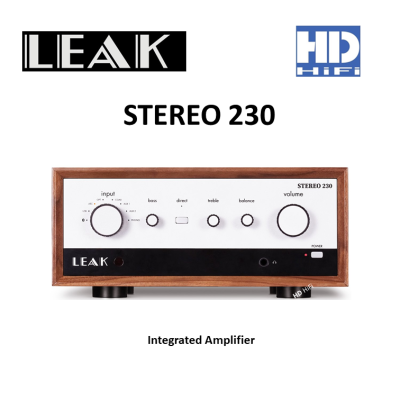

LEAK STEREO 230 Integrated Amplifier

General Description Integrated Amplifier
D to A Converter ES9038Q2M
Design Philosophy and Core Technology ·
2 x 75W (8ohm) / 2 x 115W (4ohm) Class AB
· ST MOSFET TDA7293 Dual Parallel Amplifier
· ES9038Q2M 32-bit DAC
· Built-in Certified Hardware MQA Full Decoder (PC USB, Coax, Optical)
· Support Bluetooth 5.0 (aptX / aptX LL) streaming
· Low Noise Moving Magnet Phono stage
· Dedicated Current-Feedback Headphone AMP
Inputs
2 x Analogue, 1 x Phono (MM), 1 x SPDIF (Coax), 1 x SPDIF (Optical), 1 x HDMI ARC,
1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger
· Support USB Upgrade
Outputs
1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency Optical/Coaxial:
44.1kHz ---192kHz
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Rated Power Output
2 x 75W (8ohm, THD<1%); 2 x 115W (4ohm, THD<1%)
