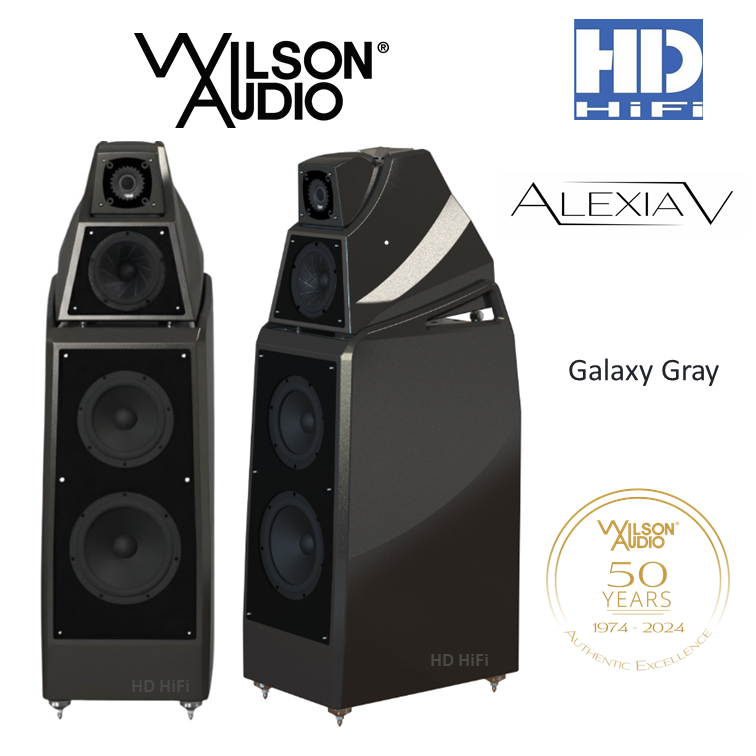

Wilson Audio Alexia V

Wilson Audio is well known for its continuous pursuit of “Excellence in
All Things” and persistent R&D advancements. As development nished
on Alexx V and as Alexia Series 2 reached its ve year anniversary,
Wilson Audio’s Engineers were put to the test to see how far they could
34
push Alexia’s performance envelope. What unfolded is nothing short of
remarkable. More than thirty areas of improvement were identi ed and
re ned. Bene ting from the enormous evolutions found in Chronosonic
XVX and Alexx V, Alexia V truly sits upon the shoulders of giants.

Wilson Audio’s engineering team is always evaluating and re ning major
hardware components in the search for breakthroughs that serve the
music. A few more of the upgrades found in Alexia V:
• Included with Alexia V is a complete set of Wilson Audio Acoustic
Diode. An all-new spike system launched with Alexx V, which has been
completely upgraded from our standard spike system, and features
a novel combination of austenitic stainless steel and V-Material. This
coupling system was created by Wilson Audio’s Special Applications
Engineering (WASAE) division and has superlative vibration
management that reveals far greater dynamic nuances across the
entire frequency spectrum.
• Resistor mounting hardware is now attached to carbon ber and
angled in such a way for a more beautiful presentation and ease to
work with.
• The improved and aesthetically appealing external cable dressing
solution.
• A new stylized alignment “staircase” block has been developed for
ease of visibility during installation.
• The woofer port has been improved to increase laminar ow.
• Mid enclosure internal volume was increased 6.4% to allow a more
open sounding midrange. The woofer enclosure internal volume is
now 8.9% larger compared with Alexia Series 2 creating deeper low
frequency reproduction and faster transient settling.
• Re ned internal midrange wave di users allow faster midrange
settling.
• There is now an integrated Bubble Level on the top of the woofer
cabinet which makes leveling the loudspeaker much easier and more
convenient.

Speci cations
Enclosure Type Woofer:
Enclosure Type Midrange:
Enclosure Type Tweeter:
Woofers:
Midrange:
Tweeter:
Sensitivity:
Nominal Impedance:
Minimum Ampli er Power:
Frequency Response:
Overall Dimensions:
System Weight Per Channel (uncrated):
Total System Shipping Weight (approx.):
Rear Ported
Rear Vented
Sealed
One—8 inches (20.32 cm)
One—10 inches (25.4 cm)
One—7 inches (17.78 cm)
One—1 inch (2.54 cm)
90 dB @ 1 Watt @ 1 Meter @ 1 kHz
4 ohms / minimum 2.59 ohms @ 84 Hz
20 Watts per channel
19 Hz – 33 kHz +/- 3 dB Room Average Response [RAR]
Height—50 15/16 inches (129.42 cm) w/o spikes
Width—15 3/4 inches (40.01 cm)
Depth—24 3/16 inches (61.41 cm)
265 lbs each (120.20 kg)
795 lbs pair (360.61 kg)
