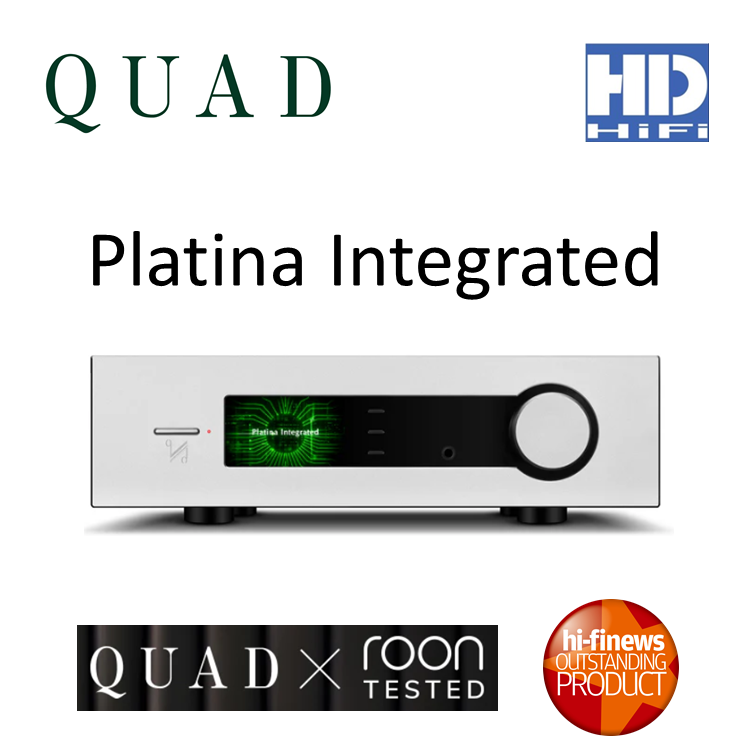

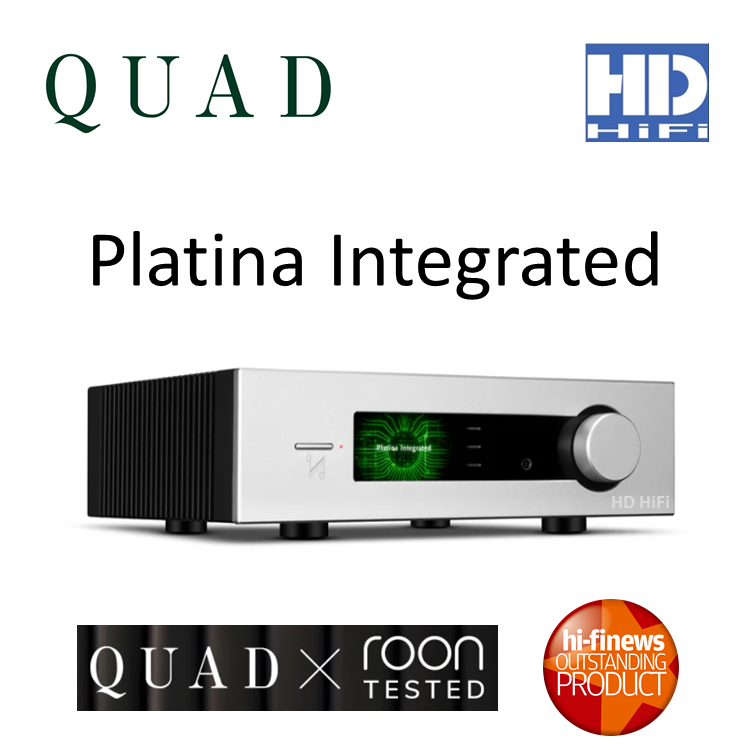

The PLATINA series marks a leap forward in design, application and implementation for QUAD.
This new flagship seamlessly blends QUAD heritage with a thoroughly modern digital core.
Specifications
Design Philosophy and Core Technology
2 x 200W (8 ohm) / 2x300W (4 ohm)
Class AB Dual Mono Design
ES9038Pro 32-bit DAC
Roon Tested
Highly linear Analogue Volume Control
4.3" 800 x 480 Full View IPS LCD
Dedicated High-performance Low Noise MM/
MC Phono stage with selectable gain (46/52/60dB)
Dedicated Current-Feedback Headphone Amp
Support USB Upgrade
General Description
Integrated Amplifier
Design Philosophy and Core Technology
2 x 200W (8 ohm) / 2x300W (4 ohm)
Class AB Dual Mono Design
ES9038Pro 32-bit DAC
Roon Tested
Highly linear Analogue Volume Control
4.3" 800 x 480 Full View IPS LCD
Dedicated High-performance Low Noise MM/
MC Phono stage with selectable gain (46/52/60dB)
Dedicated Current-Feedback Headphone Amp
Support USB Upgrade

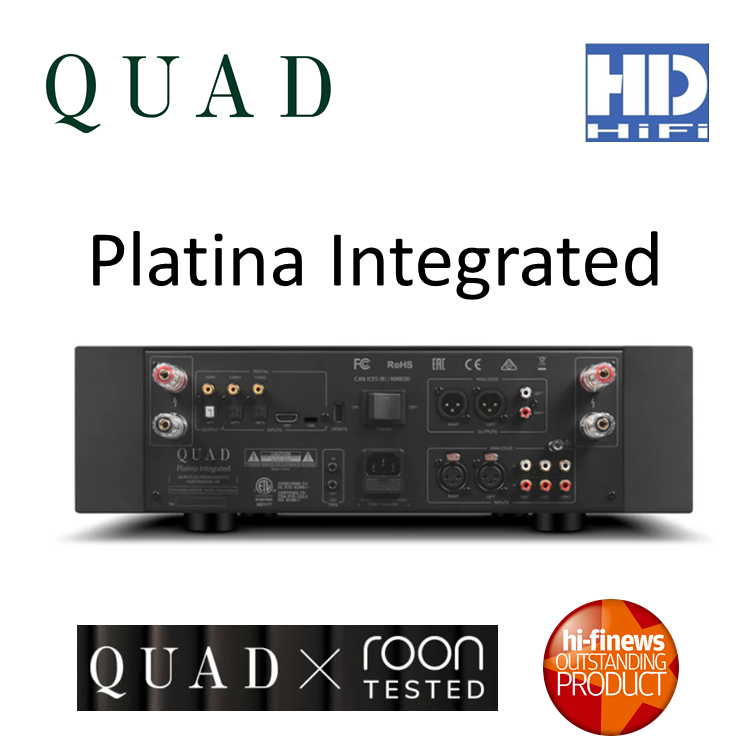

Inputs
2 x Analogue (RCA), 1 x XLR, 1 x Phono (MM / MC)
2 x SPDIF (Coaxial), 2 x SPDIF (Optical)
1 x PC USB(TYPE C) 1 x HDMI ARC
1 x 12V Trigger
Outputs
1 x RCA (pair), 1 x XLR (pair) , 1 x Stereo Speaker binding post (pair),
1 x Optical, 1 x Coaxial, 1 x 12V Trigger
Sampling Frequency
Optical / Coaxial: 44.1kHz - 192kHz
PC USB: 44.1kHz - 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512)
General
Standby Power Consumption
<0.5W
Net Weight
17.1kg
Gross Weight
19.3kg
Dimensions (mm) (W x H x D)
445 x 134.5 x 348mm
Carton Size (mm) (W x H x D)
500 x 225 x 450mm
Finish
Black / Silver
Power Requirements (depending on region)
220-240V ~ 50/60Hz
100-120V ~ 50/60Hz
Standard Accessories
Power Cord, Remote Control, User Manual
