ELECTROCOMPANIET EC 4.8 MKII Reference Preamplifier
คุณสมบัติสินค้า:
SKU : EC-003
หมวดหมู่ : ELECTROCOMPANIET , Amplifier , Pre Amplifier ,
แบรนด์ : Electrocompaniet
Share
ELECTROCOMPANIET

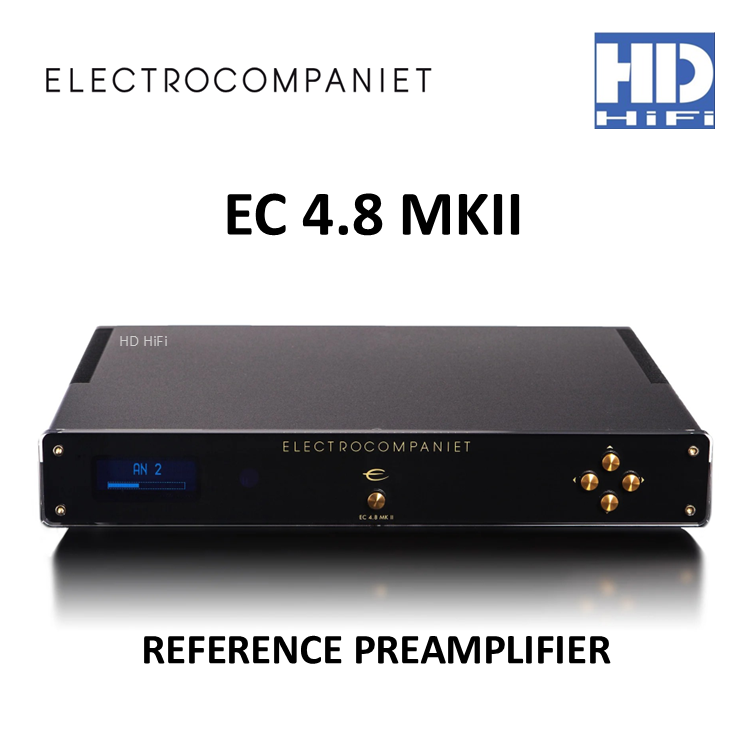

EC 4.8 MKII Reference Preamplifier
With its outstanding performance, excellent resolution, superb control and precise musical reproduction, we have made a preamplifier that is true to our slogan, “Closing the gap to the master”. Our new two-channel EC 4.8 MKII preamplifier enhances the predecessor, and is sure to make all good power amplifiers sound even better!
All measurements are made at 120V / 240V //50Hz / 60Hz
Input impedance
47 Kohm
Output impedance
100 ohm
Max input
+-15 Vp-p ( +- 30Vp-p Bal)
Max output
+-30 Vp-p ( +- 30Vp-p Bal)
Minimum gain
-111dB
Maximum gain
6dB
Noise Floor(0 dB gain)
< -130 dB
Frequency responce
1 – 200 kHz
Channel Seperation
> 120dB
THD (1V in, 1V out)
<0.002%
Power consumption (no load or signal)
30 W
Dimensions and Waight
Width
470 mm – 18.5 inches
Depth
372 mm – 14.64 inches
Height
80 mm – 3.14 inches
Weight
11.3 kg – 24.9 lbs

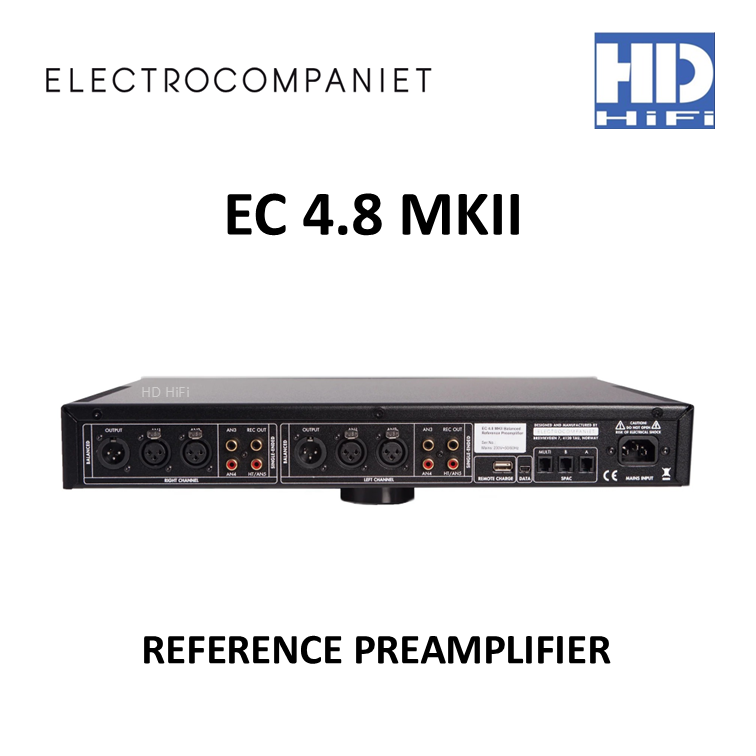

Inputs
Balanced
2 x 2 channel
Single ended
3 x 2 channel
Control Ports
Nettwork
3 x SPAC
Programming
1 x USB
Outputs
Balanced
1 x 2 channel
Single ended
Record Out
